PackageTO-243AA
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1700T-3502E/MB technical specifications.
General
Accuracy
2%
Package/Case
TO-243AA
Dropout Voltage
178mV
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Min Output Voltage
3.5V
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
250mA
Output Type
Fixed
Output Voltage
3.5V
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
44dB
Quiescent Current
4uA
RoHS Compliant
Yes
Compliance
RoHS
Not Compliant
Datasheet
Microchip MCP1700T-3502E/MB Datasheet
Download the complete datasheet for Microchip MCP1700T-3502E/MB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

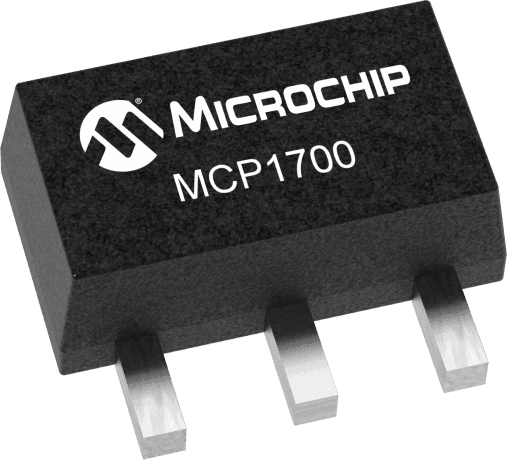

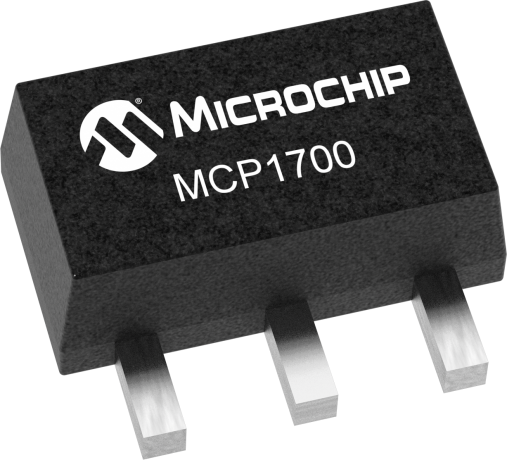

Product Images
