Positive fixed output linear voltage regulator, 3.3V nominal output voltage with 2% accuracy. Features a 250mA maximum output current and a 525mV dropout voltage. Operates from a 2.7V to 13.2V input voltage range. Packaged in a 3-pin TO-92 through-hole mount. Maximum operating temperature of 125°C.
PackageTO-92
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1702-3302E/TO technical specifications.
General
Accuracy
2%
Package/Case
TO-92
Dropout Voltage
525mV
Height
4.62mm
Input Bias Current
2uA
Lead Free
Lead Free
Length
4.71mm
Max Input Voltage
13.2V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Min Output Voltage
3.3V
Mount
Through Hole
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
250mA
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
2%
Package Quantity
1000
Packaging
Bulk
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
44dB
Quiescent Current
5uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
3.62mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1702-3302E/TO Datasheet
Download the complete datasheet for Microchip MCP1702-3302E/TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

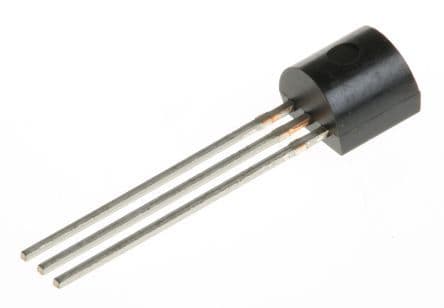

Product Images
