Positive fixed output linear voltage regulator with a 5V nominal output voltage and 2% accuracy. Features a 250mA maximum output current and a low dropout voltage of 330mV. Operates from a 2.7V to 13.2V input voltage range and is housed in a 3-pin TO-92 package for through-hole mounting. This RoHS compliant component offers a quiescent current of 5uA and a maximum operating temperature of 125°C.
PackageTO-92
MountingThrough Hole
PolarityPositive
Power644mW
Quick Jump:
Technical Specifications
Microchip MCP1702-5002E/TO technical specifications.
General
Accuracy
2%
Package/Case
TO-92
Dropout Voltage
330mV
Height
4.62mm
Input Bias Current
2uA
Lead Free
Lead Free
Length
4.71mm
Max Input Voltage
13.2V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Min Output Voltage
5V
Mount
Through Hole
Nominal Output Voltage
5V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
250mA
Output Type
Fixed
Output Voltage
5V
Output Voltage Accuracy
2%
Package Quantity
1000
Packaging
Bulk
Polarity
Positive
Power Dissipation
644mW
Power Supply Rejection Ratio (PSRR)
44dB
Quiescent Current
5uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
3.62mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1702-5002E/TO Datasheet
Download the complete datasheet for Microchip MCP1702-5002E/TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

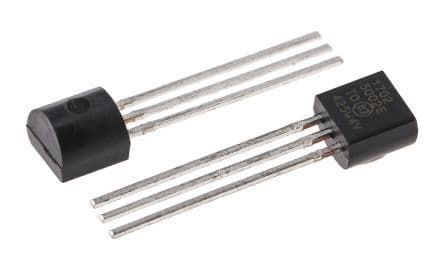

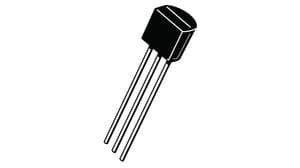

Product Images
