1.2V fixed output, positive polarity linear voltage regulator IC with 250mA output current. Features a low dropout voltage of 750mV and 2% output voltage accuracy. Operates from a 2.7V to 13.2V input range with a quiescent current of 5µA. Packaged in a 3-pin SOT-23 surface mount configuration. RoHS compliant and lead-free.
PackageSOT-23
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1702T-1202E/CB technical specifications.
General
Accuracy
2%
Package/Case
SOT-23
Dropout Voltage
750mV
Height
0.051inch
Lead Free
Lead Free
Length
0.122inch
Max Input Voltage
13.2V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Mount
Surface Mount
Nominal Output Voltage
1.2V
Number of Outputs
1
Output Current
250mA
Output Type
Fixed
Output Voltage
1.2V
Output Voltage Accuracy
2%
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
5uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
0.071inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1702T-1202E/CB Datasheet
Download the complete datasheet for Microchip MCP1702T-1202E/CB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

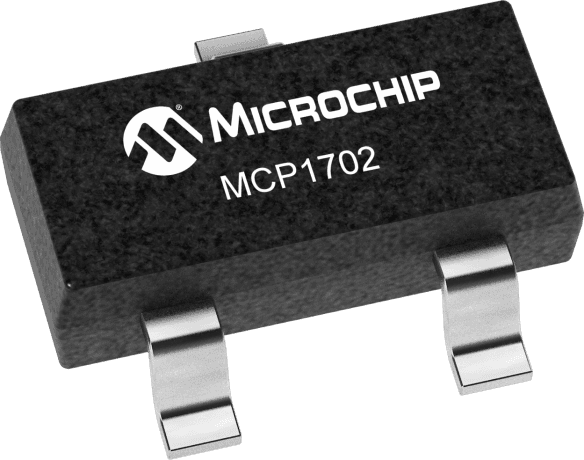

Product Images
