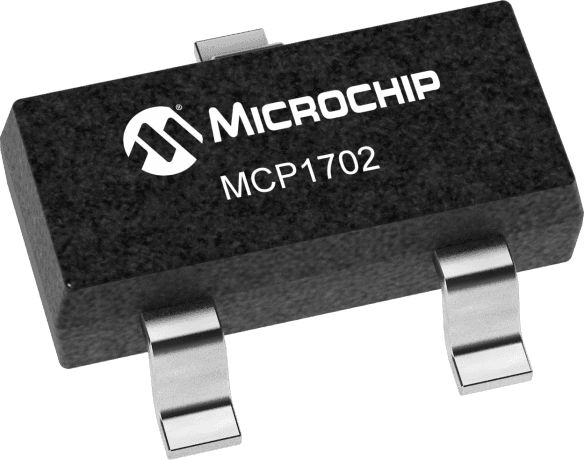

1.5V positive fixed output linear voltage regulator, offering 2% output voltage accuracy. Features a maximum output current of 250mA and a quiescent current of 5µA. Operates with an input voltage range from 2.7V to 13.2V and a wide temperature range of -40°C to 125°C. Surface mountable in a TO-236-3 (SOT-23A) package, this RoHS compliant component provides a Power Supply Rejection Ratio (PSRR) of 44dB.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MCP1702T-1502E/CB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 2% |
| Package/Case | TO-236-3 |
| Height | 0.051inch |
| Lead Free | Lead Free |
| Length | 0.122inch |
| Max Input Voltage | 13.2V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 250mA |
| Min Output Voltage | 1.5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 200mA |
| Output Type | Fixed |
| Output Voltage | 1.5V |
| Output Voltage Accuracy | 2% |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 44dB |
| Quiescent Current | 5uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Width | 0.071inch |
| RoHS | Compliant |
