1.8V fixed positive LDO regulator, offering a 250mA output current with a 2% accuracy. Features a low dropout voltage of 330mV and operates from a 2.7V to 13.2V input range. This surface mount component is housed in a TO-236-3 (SOT-23A) package, with a quiescent current of 5uA and a maximum power dissipation of 253mW. It supports a wide operating temperature range from -40°C to 125°C and is RoHS compliant.
PackageTO-236-3
Current5uA
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1702T-1802E/CB technical specifications.
General
Accuracy
2%
Package/Case
TO-236-3
Dropout Voltage
330mV
Height
0.051inch
Input Bias Current
2uA
Lead Free
Lead Free
Length
0.122inch
Max Input Voltage
13.2V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Max Output Voltage
1.8V
Min Output Voltage
1.8V
Max Supply Voltage
13.2V
Min Supply Voltage
2.7V
Mount
Surface Mount
Nominal Output Voltage
1.8V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
250mA
Output Type
Fixed
Output Voltage
1.8V
Output Voltage Accuracy
2%
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
253mW
Power Supply Rejection Ratio (PSRR)
44dB
Quiescent Current
5uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
5uA
Termination
SMD/SMT
Width
0.071inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1702T-1802E/CB Datasheet
Download the complete datasheet for Microchip MCP1702T-1802E/CB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

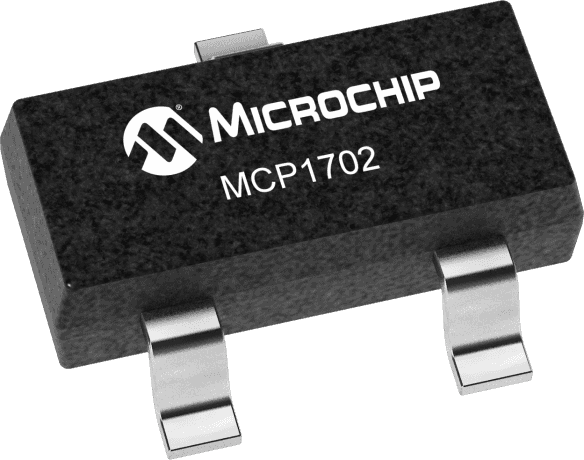

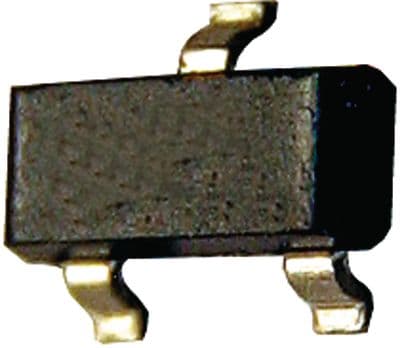

Product Images
