Positive fixed output linear voltage regulator with a 2.5V nominal output voltage and 2% accuracy. Features a 750mV dropout voltage at 250mA output current, supporting a maximum input voltage of 13.2V and a minimum input voltage of 2.7V. This surface mount component offers a low quiescent current of 5uA and a 44dB PSRR. Packaged in a 3-pin SOT-23A (TO-236-3) plastic package, it operates within a temperature range of -40°C to 125°C.
PackageTO-236-3
Current5uA
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1702T-2502E/CB technical specifications.
General
| Accuracy | 2% |
| Package/Case | TO-236-3 |
| Dropout Voltage | 750mV |
| Height | 1.3mm |
| Input Bias Current | 2uA |
| Lead Free | Lead Free |
| Length | 3.1mm |
| Max Input Voltage | 13.2V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 250mA |
| Min Output Voltage | 2.5V |
| Mount | Surface Mount |
| Nominal Output Voltage | 2.5V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 250mA |
| Output Type | Fixed |
| Output Voltage | 2.5V |
| Output Voltage Accuracy | 2% |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 44dB |
| Quiescent Current | 5uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 5uA |
| Width | 1.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP1702T-2502E/CB Datasheet
Download the complete datasheet for Microchip MCP1702T-2502E/CB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

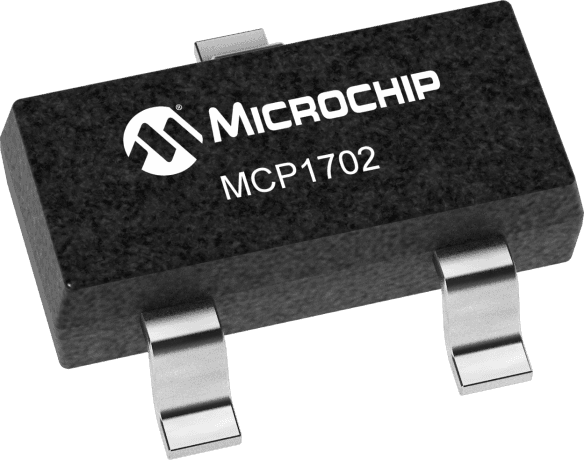

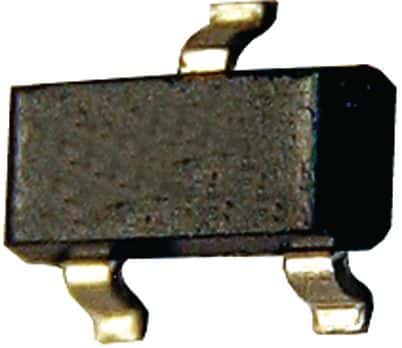

Product Images
