2.5V positive fixed output linear voltage regulator with 750mV dropout voltage and 250mA output current. Features 2% accuracy, 5µA quiescent current, and 2µA input bias current. Operates from 2.7V to 13.2V input voltage and is available in a 3-pin SOT-89 surface mount package. Suitable for applications requiring stable 2.5V output with low power consumption, operating from -40°C to 125°C.
PackageSOT-89
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1702T-2502E/MB technical specifications.
General
Accuracy
2%
Package/Case
SOT-89
Dropout Voltage
750mV
Height
1.6mm
Input Bias Current
2uA
Lead Free
Lead Free
Length
4.6mm
Max Input Voltage
13.2V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Min Output Voltage
2.5V
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Current
250mA
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
1000
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
5uA
RoHS Compliant
Yes
Width
2.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1702T-2502E/MB Datasheet
Download the complete datasheet for Microchip MCP1702T-2502E/MB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

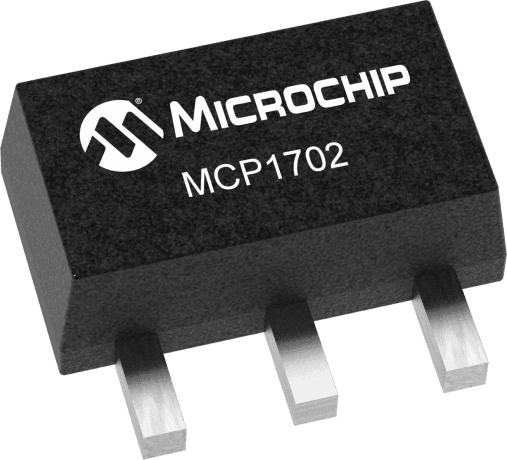

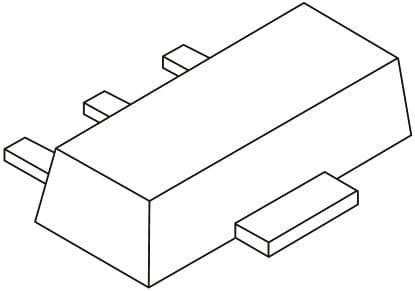

Product Images
