Automotive-grade positive linear voltage regulator with a fixed 3V output and 250mA maximum output current. Features a low dropout voltage of 625mV and 2% output voltage accuracy. Operates from a 2.7V to 13.2V input range with a quiescent current of 5µA. Packaged in a 3-pin SOT-23 surface-mount case, this RoHS compliant component is supplied on tape and reel.
PackageSOT-23
Current5uA
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1702T-3002E/CB technical specifications.
General
Accuracy
2%
Package/Case
SOT-23
Dropout Voltage
625mV
Height
0.051inch
Input Bias Current
2uA
Lead Free
Lead Free
Length
0.122inch
Max Input Voltage
13.2V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Min Output Voltage
3V
Mount
Surface Mount
Nominal Output Voltage
3V
Number of Outputs
1
Output Current
250mA
Output Type
Fixed
Output Voltage
3V
Output Voltage Accuracy
2%
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
253mW
Quiescent Current
5uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
5uA
Width
0.071inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1702T-3002E/CB Datasheet
Download the complete datasheet for Microchip MCP1702T-3002E/CB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

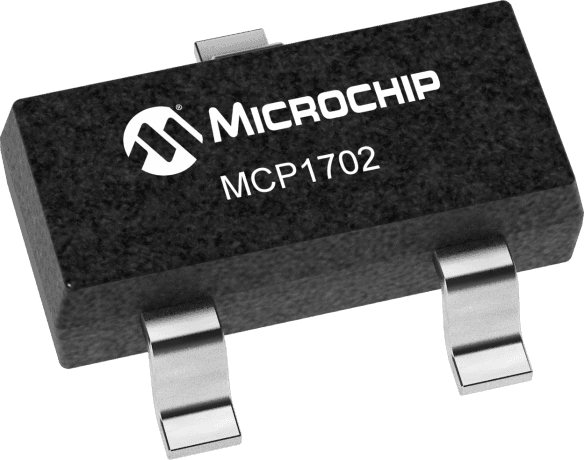

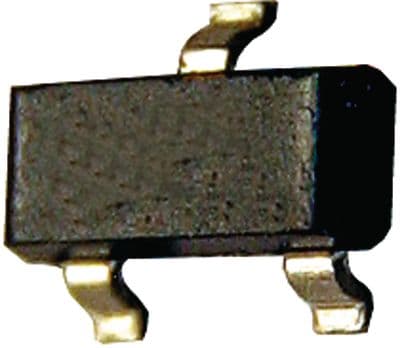

Product Images
