Positive fixed output linear voltage regulator, 5V nominal output voltage with 2% accuracy. Features a 250mA maximum output current and a 330mV dropout voltage. Operates from a 2.7V to 16V input voltage range. Packaged in a SOT-223 surface mount case, this RoHS compliant component offers a low 5uA quiescent current and 2uA input bias current.
PackageSOT-223
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1703-5002E/DB technical specifications.
General
Accuracy
2%
Package/Case
SOT-223
Dropout Voltage
330mV
Height
1.6mm
Input Bias Current
2uA
Lead Free
Lead Free
Length
6.5mm
Max Input Voltage
16V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Min Output Voltage
5V
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
250mA
Output Type
Fixed
Output Voltage
5V
Output Voltage Accuracy
2%
Package Quantity
78
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
44dB
Quiescent Current
5uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1703-5002E/DB Datasheet
Download the complete datasheet for Microchip MCP1703-5002E/DB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

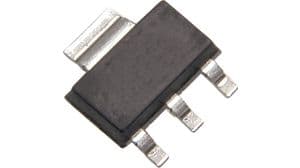

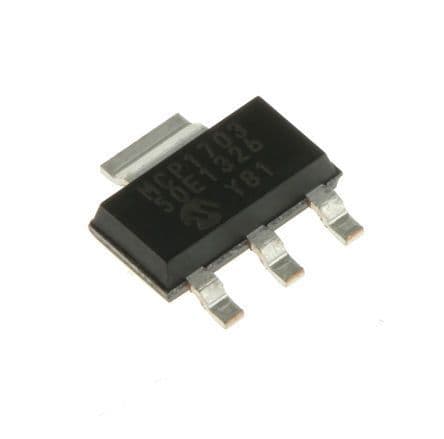

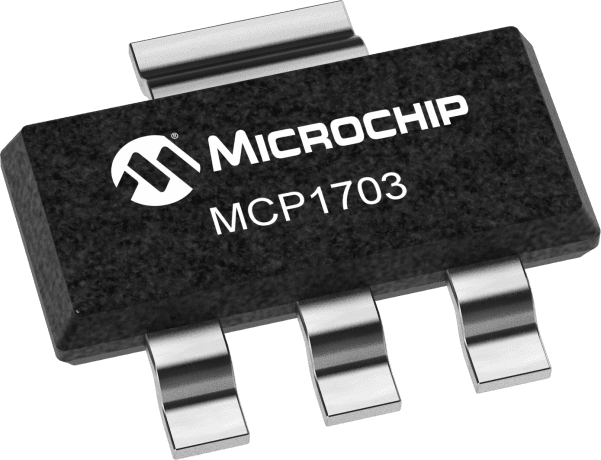

Product Images
