1.8V positive fixed output linear voltage regulator, surface mount, SOT-23A package. Features 250mA maximum output current, 650mV dropout voltage, and 2% accuracy. Operates from 2.7V to 16V input voltage with a quiescent current of 5uA. RoHS compliant, lead-free, with a maximum operating temperature of 125°C.
PackageTO-236-3
MountingSurface Mount
PolarityPositive
Power253mW
Quick Jump:
Technical Specifications
Microchip MCP1703T-1802E/CB technical specifications.
General
Accuracy
2%
Package/Case
TO-236-3
Dropout Voltage
650mV
Height
1.3mm
Input Bias Current
2uA
Lead Free
Lead Free
Length
3.1mm
Max Input Voltage
16V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Max Output Voltage
1.8V
Min Output Voltage
1.8V
Max Supply Voltage
16V
Min Supply Voltage
2.7V
Mount
Surface Mount
Nominal Output Voltage
1.8V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
200mA
Output Type
Fixed
Output Voltage
1.8V
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
253mW
Power Supply Rejection Ratio (PSRR)
44dB
Quiescent Current
5uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Width
1.8mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1703T-1802E/CB Datasheet
Download the complete datasheet for Microchip MCP1703T-1802E/CB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

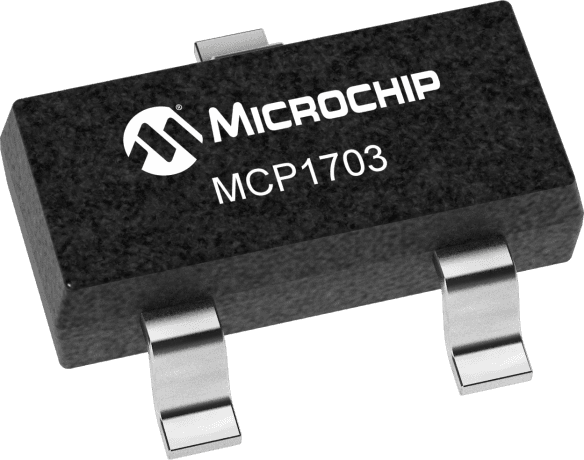

Product Images
