2.5V fixed positive LDO regulator, offering 250mA output current with a 750mV dropout voltage. Features a 2% output voltage accuracy and a low 5µA quiescent current. Operates from a 2.7V to 16V input voltage range, with a maximum operating temperature of 125°C. Packaged in a 3-pin SOT-23A (TO-236-3) surface mount package, supplied on tape and reel.
PackageTO-236-3
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1703T-2502E/CB technical specifications.
General
Accuracy
2%
Package/Case
TO-236-3
Dropout Voltage
750mV
Height
1.6mm
Input Bias Current
2uA
Lead Free
Lead Free
Length
4.6mm
Max Input Voltage
16V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Min Output Voltage
2.5V
Mount
Surface Mount
Nominal Output Voltage
2.5V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
250mA
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
44dB
Quiescent Current
5uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
2.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1703T-2502E/CB Datasheet
Download the complete datasheet for Microchip MCP1703T-2502E/CB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

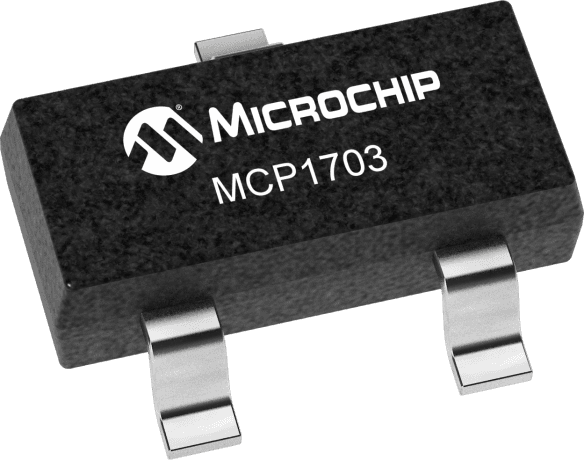

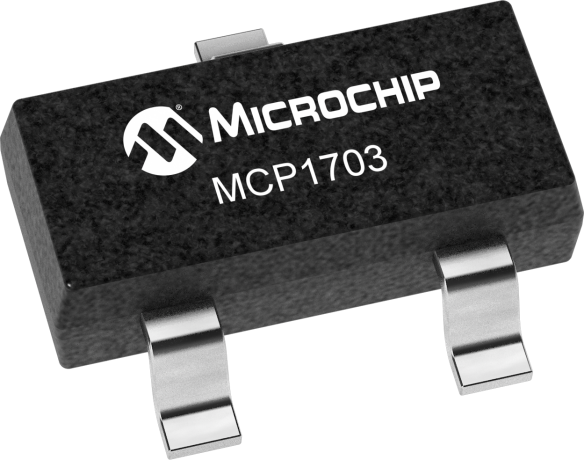

Product Images
