2.5V positive fixed output linear voltage regulator with 500mA output current. Features a low 210mV dropout voltage and 2% accuracy. Operates with a maximum input voltage of 6V and a minimum input voltage of 2.3V. Housed in a lead-free SOIC-8 surface mount package, measuring 4.9mm x 3.9mm x 1.5mm. Offers a wide operating temperature range from -40°C to 125°C.
PackageSOIC
Current120uA
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1725-2502E/SN technical specifications.
General
Accuracy
2%
Package/Case
SOIC
Dropout Voltage
210mV
Height
1.5mm
Input Bias Current
120uA
Length
4.9mm
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Mount
Surface Mount
Number of Outputs
1
Output Current
500mA
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
100
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
220uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
120uA
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1725-2502E/SN Datasheet
Download the complete datasheet for Microchip MCP1725-2502E/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

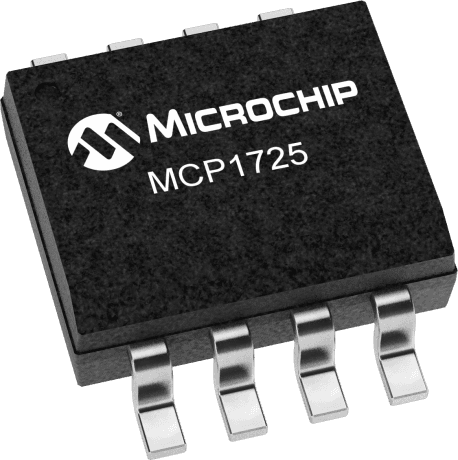

Product Images
