5V positive fixed output linear voltage regulator with 500mA output current. Features a low 210mV dropout voltage and 2% output voltage accuracy. Operates from a 2.3V to 6V input voltage range. Packaged in an 8-pin SOIC surface mount package with dimensions of 4.9mm (L) x 3.9mm (W) x 1.25mm (H). RoHS compliant and lead-free.
PackageSOIC
Current120uA
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1725-5002E/SN technical specifications.
General
Accuracy
2%
Package/Case
SOIC
Dropout Voltage
210mV
Height
1.25mm
Input Bias Current
120uA
Lead Free
Lead Free
Length
4.9mm
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Min Output Voltage
5V
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Output Current
500mA
Output Type
Fixed
Output Voltage
5V
Output Voltage Accuracy
2%
Package Quantity
100
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
220uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
120uA
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1725-5002E/SN Datasheet
Download the complete datasheet for Microchip MCP1725-5002E/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

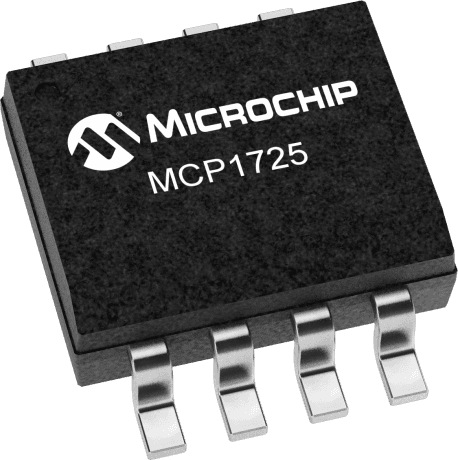

Product Images
