Adjustable positive voltage regulator IC featuring 500mA output current and 0.5% output voltage accuracy. Operates with a minimum input voltage of 2.3V and a maximum of 6V, offering an adjustable output from 800mV to 5V. This surface mount component boasts a low dropout voltage of 210mV and a quiescent current of 220uA. Housed in an 8-pin SOIC package, it is RoHS compliant and operates across a wide temperature range of -40°C to 125°C.
PackageSOIC
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1725-ADJE/SN technical specifications.
General
| Accuracy | 0.5% |
| Package/Case | SOIC |
| Dropout Voltage | 210mV |
| Height | 1.25mm |
| Input Bias Current | 120uA |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Output Voltage | 5V |
| Min Output Voltage | 800mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 500mA |
| Output Type | Adjustable |
| Output Voltage | 5V |
| Output Voltage Accuracy | 0.5% |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Quiescent Current | 220uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | 410mV |
| RoHS Compliant | Yes |
| Width | 3.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP1725-ADJE/SN Datasheet
Download the complete datasheet for Microchip MCP1725-ADJE/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

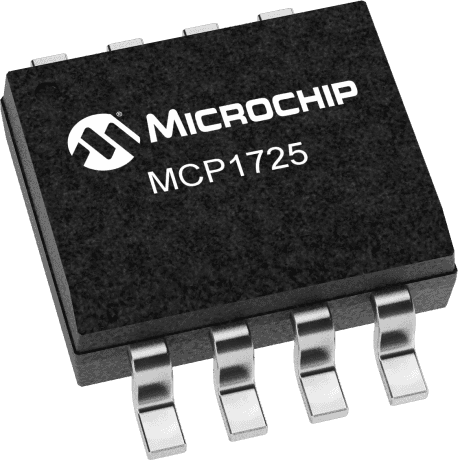

Product Images
