Technical Specifications
Microchip MCP1725T-ADJE/SN technical specifications.
General
Accuracy
0.5%
Dropout Voltage
210mV
Input Bias Current
120uA
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Outputs
1
Output Current
500mA
Output Type
Adjustable
Output Voltage
5V
Package Quantity
3300
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
220uA
Radiation Hardening
No
Reference Voltage
410mV
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1725T-ADJE/SN Datasheet
Download the complete datasheet for Microchip MCP1725T-ADJE/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

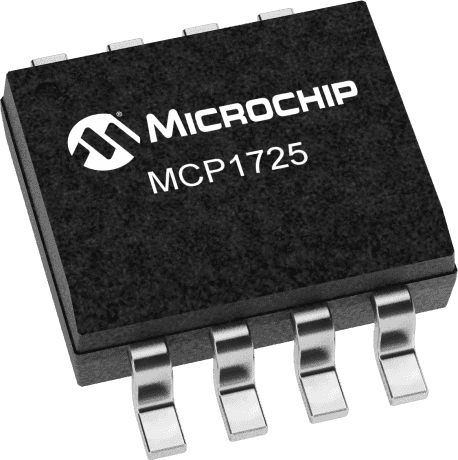

Product Images
