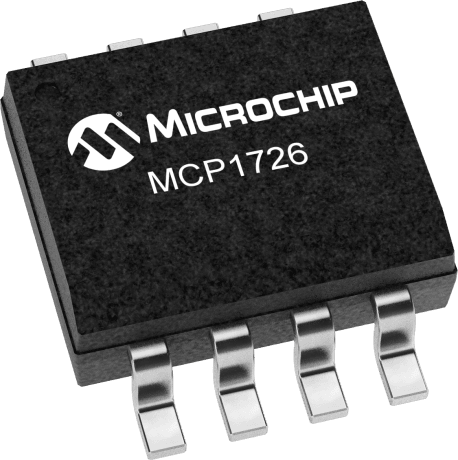

3.3V positive fixed output linear voltage regulator with 220mV dropout voltage at 1A output current. Features a 2.5% output voltage accuracy, 6V maximum input voltage, and 1A maximum output current. This surface mount SOIC-8 package component operates from -40°C to 125°C and offers a 54dB Power Supply Rejection Ratio (PSRR). RoHS compliant and lead-free.
PackageSOIC
MountingSurface Mount
PolarityPositive
Power366mW
Quick Jump:
Technical Specifications
Microchip MCP1726-3302E/SN technical specifications.
General
Accuracy
2.5%
Package/Case
SOIC
Dropout Voltage
220mV
Height
1.25mm
Input Bias Current
140uA
Lead Free
Lead Free
Length
4.9mm
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Min Output Voltage
3.3V
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
2.5%
Package Quantity
100
Packaging
Rail/Tube
Polarity
Positive
Power Dissipation
366mW
Power Supply Rejection Ratio (PSRR)
54dB
Quiescent Current
220uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1726-3302E/SN Datasheet
Download the complete datasheet for Microchip MCP1726-3302E/SN to view detailed technical specifications.
