5V positive fixed output linear voltage regulator with 0.5V dropout voltage and 1A maximum output current. Features 2.5% accuracy, 6V maximum input voltage, and a wide operating temperature range of -40°C to 125°C. Surface mountable in an 8-pin SOIC package (0.150 inch width), this lead-free component offers 54dB PSRR and 220uA quiescent current.
PackageSOIC
MountingSurface Mount
PolarityPositive
Power366mW
Quick Jump:
Technical Specifications
Microchip MCP1726-5002E/SN technical specifications.
General
Accuracy
2.5%
Package/Case
SOIC
Dropout Voltage
500mV
Height
1.25mm
Input Bias Current
140uA
Lead Free
Lead Free
Length
4.9mm
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
5V
Package Quantity
100
Packaging
Rail/Tube
Polarity
Positive
Power Dissipation
366mW
Power Supply Rejection Ratio (PSRR)
54dB
Quiescent Current
220uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1726-5002E/SN Datasheet
Download the complete datasheet for Microchip MCP1726-5002E/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

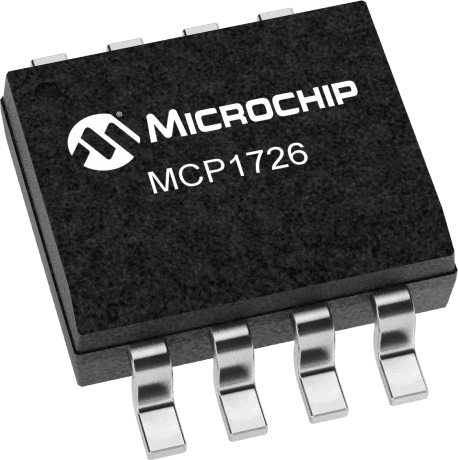

Product Images
