Technical Specifications
Microchip MCP1754ST-5002E/DB technical specifications.
General
| Accuracy | 2% |
| Package/Case | SOT-223 |
| Dropout Voltage | 300mV |
| Height | 1.7mm |
| Length | 6.7mm |
| Max Input Voltage | 16V |
| Min Input Voltage | 3.6V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 150mA |
| Number of Outputs | 1 |
| Output Current | 150mA |
| Output Type | Fixed |
| Output Voltage | 5V |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 90uA |
| RoHS Compliant | Yes |
| Width | 3.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP1754ST-5002E/DB Datasheet
Download the complete datasheet for Microchip MCP1754ST-5002E/DB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

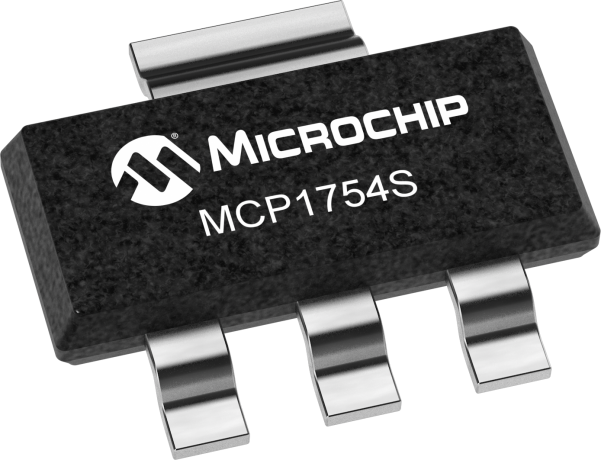

Product Images
