5V fixed positive LDO regulator with 300mV dropout voltage and 150mA output current. Features 2% output voltage accuracy, 16V maximum input voltage, and a quiescent current of 90uA. Housed in a 3-pin SOT-89 package, this RoHS compliant component operates from -40°C to 125°C. Offers a Power Supply Rejection Ratio (PSRR) of 72dB.
PackageSOT-89
Current56uA
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1754ST-5002E/MB technical specifications.
General
| Accuracy | 2% |
| Package/Case | SOT-89 |
| Dropout Voltage | 300mV |
| Height | 1.6mm |
| Lead Free | Lead Free |
| Length | 4.6mm |
| Max Input Voltage | 16V |
| Min Input Voltage | 3.6V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 150mA |
| Min Output Voltage | 5V |
| Max Supply Current | 250uA |
| Nominal Output Voltage | 5V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 150mA |
| Output Type | Fixed |
| Output Voltage | 5V |
| Output Voltage Accuracy | 2% |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 72dB |
| Quiescent Current | 90uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 56uA |
| Width | 4.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP1754ST-5002E/MB Datasheet
Download the complete datasheet for Microchip MCP1754ST-5002E/MB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

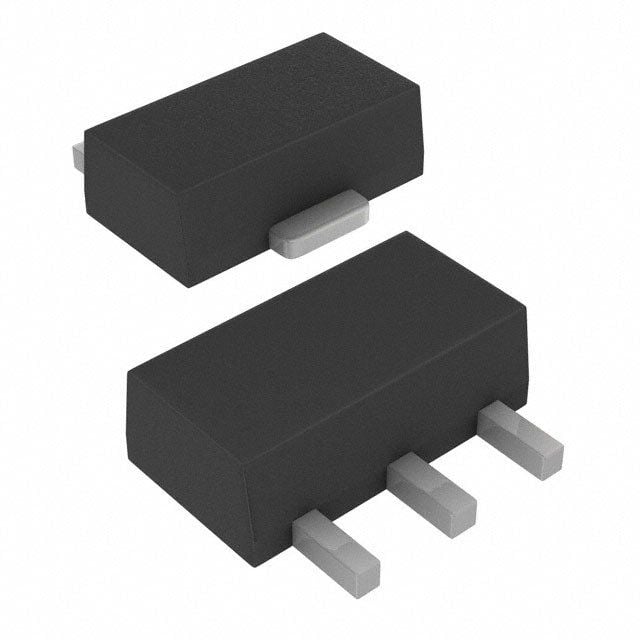

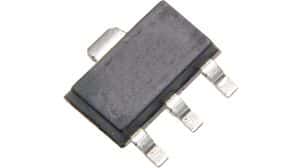

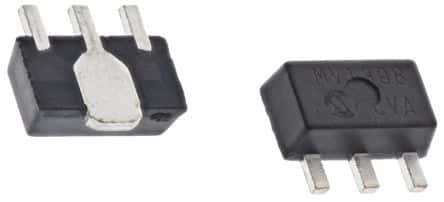

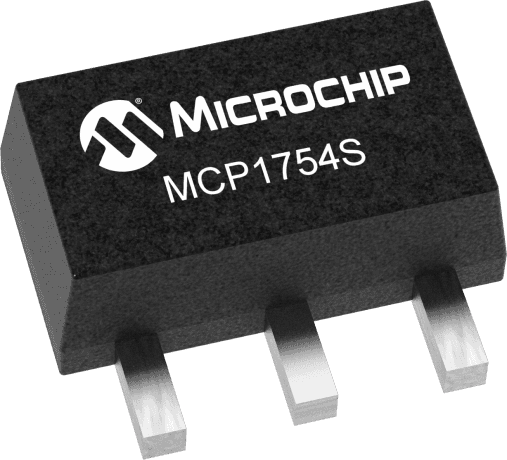

Product Images
