Positive fixed 3.3V LDO voltage regulator with 70mA output current and 2.5% output voltage accuracy. Features a 700mV dropout voltage and 80dB PSRR. Operates from a 6V to 30V input voltage range with a maximum supply current of 210uA. Packaged in a 4-pin SOT-223 surface mount configuration. Operating temperature range is -40°C to 125°C.
PackageSOT-223
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1790-3302E/DB technical specifications.
General
| Accuracy | 2.5% |
| Package/Case | SOT-223 |
| Dropout Voltage | 700mV |
| Height | 1.6mm |
| Input Bias Current | 70uA |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Max Input Voltage | 30V |
| Min Input Voltage | 6V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 70mA |
| Min Output Voltage | 3.3V |
| Max Supply Current | 210uA |
| Mount | Surface Mount |
| Nominal Output Voltage | 3.3V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 70mA |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Output Voltage Accuracy | 2.5% |
| Package Quantity | 78 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 80dB |
| Quiescent Current | 130uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 3.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP1790-3302E/DB Datasheet
Download the complete datasheet for Microchip MCP1790-3302E/DB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

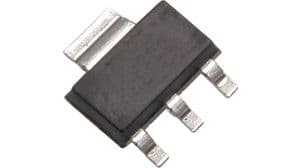

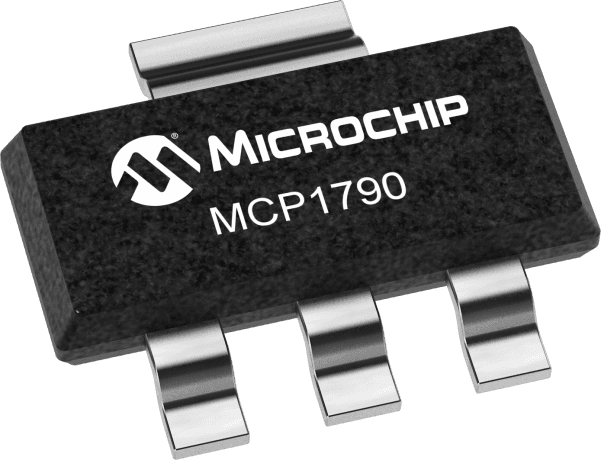

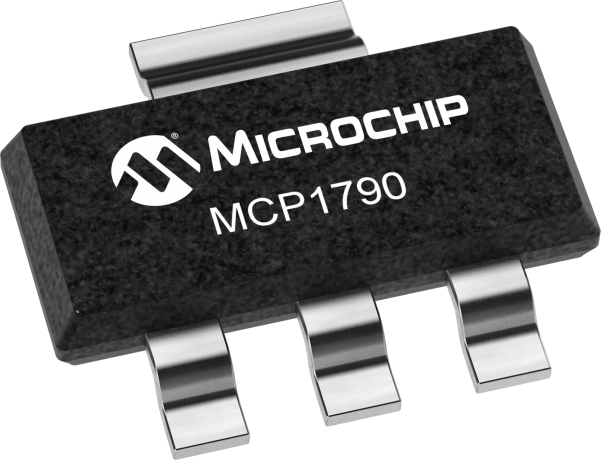

Product Images
