5V positive fixed output linear voltage regulator with 700mV dropout voltage and 70mA maximum output current. Features 2.5% accuracy, 75dB PSRR, and operates from a 6V to 30V input voltage range. Surface mountable in a SOT-223 package, this lead-free component offers a wide operating temperature range of -40°C to 125°C. Quiescent current is 130uA with a 70uA input bias current.
PackageSOT-223
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1790-5002E/DB technical specifications.
General
Accuracy
2.5%
Package/Case
SOT-223
Dropout Voltage
700mV
Height
1.7mm
Input Bias Current
70uA
Lead Free
Lead Free
Length
6.7mm
Max Input Voltage
30V
Min Input Voltage
6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
70mA
Min Output Voltage
5V
Max Supply Current
210uA
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
70mA
Output Type
Fixed
Output Voltage
5V
Package Quantity
78
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
75dB
Quiescent Current
130uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
3.7mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1790-5002E/DB Datasheet
Download the complete datasheet for Microchip MCP1790-5002E/DB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

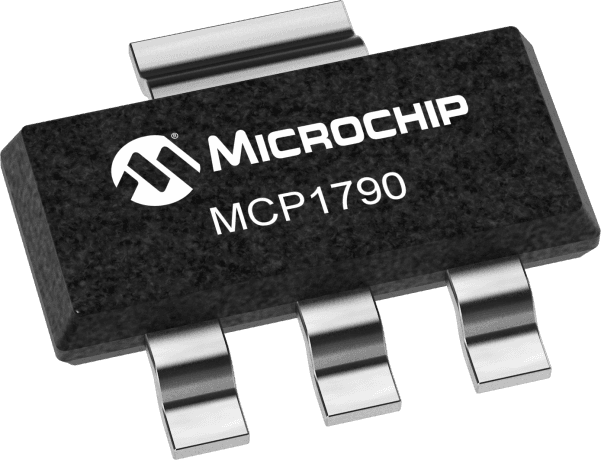

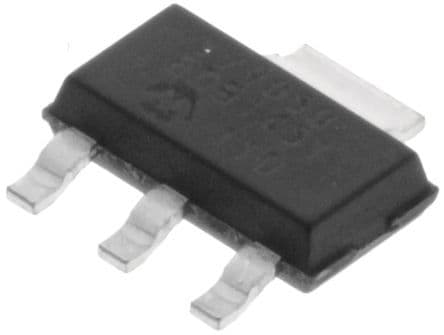

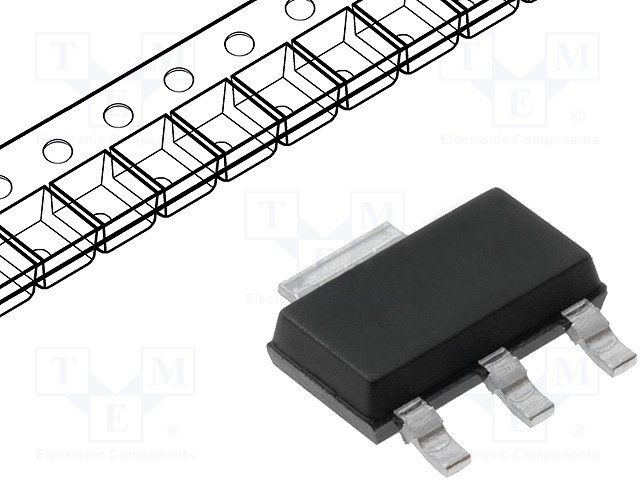

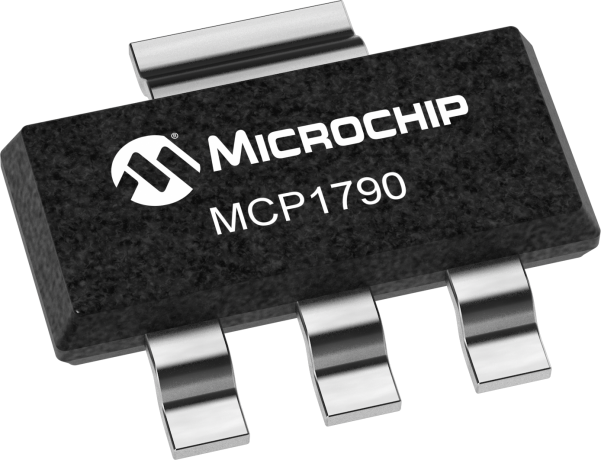

Product Images
