Microchip
MCP1791-3002E/ET
3 V FIXED POSITIVE LDO REGULATOR, 1.3 V DROPOUT, PSSO5, LEAD FREE, PLASTIC, D2PAK-5
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1791-3002E/ET technical specifications.
General
Accuracy
2.5%
Dropout Voltage
700mV
Input Bias Current
70uA
Max Input Voltage
30V
Min Input Voltage
6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Outputs
1
Output Current
70mA
Output Type
Fixed
Output Voltage
3V
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
130uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1791-3002E/ET Datasheet
Download the complete datasheet for Microchip MCP1791-3002E/ET to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

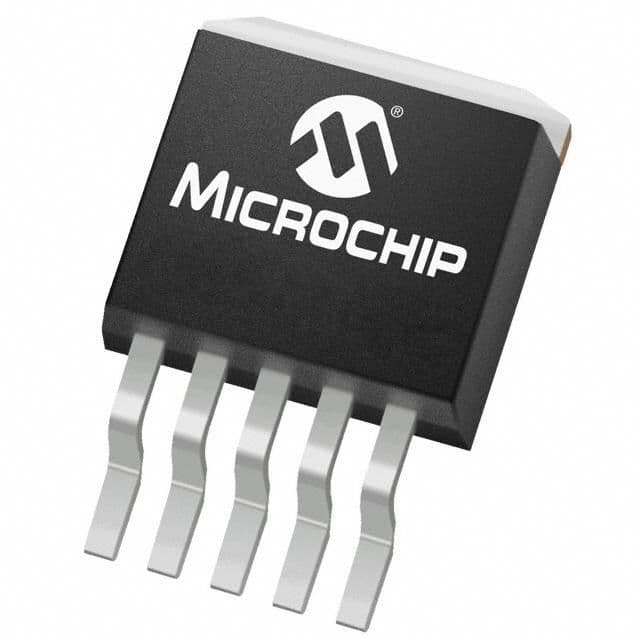

Product Images
