Microchip MCP1802T-0902I/OT technical specifications.
General
| Accuracy | 2% |
| Package/Case | SOT-23 |
| Input Bias Current | 25uA |
| Max Input Voltage | 10V |
| Min Input Voltage | 2V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 250mW |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 300mA |
| Output Type | Fixed |
| Output Voltage | 900mV |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 50uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP1802T-0902I/OT Datasheet
Download the complete datasheet for Microchip MCP1802T-0902I/OT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

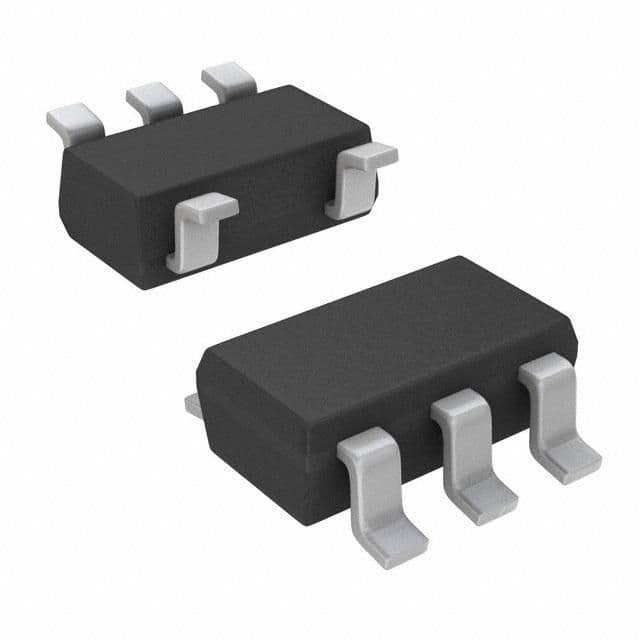

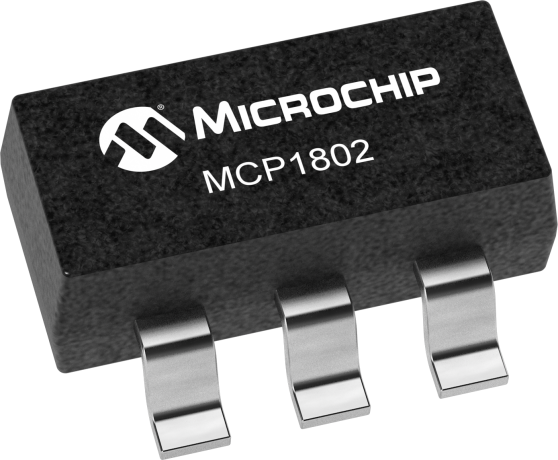

Product Images
