1.2V fixed positive LDO regulator with 300mA output current and 200mV dropout voltage. Features 2.1V to 6V input voltage range, 2.5% accuracy, and 55dB PSRR. Packaged in a SOT-223 surface mount case, operating from -40°C to 125°C. RoHS compliant.
PackageSOT-223
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1824ST-1202E/DB technical specifications.
General
Accuracy
2.5%
Package/Case
SOT-223
Dropout Voltage
200mV
Height
1.6mm
Input Bias Current
120uA
Length
6.5mm
Max Input Voltage
6V
Min Input Voltage
2.1V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
300mA
Max Output Voltage
1.2V
Max Supply Voltage
6V
Min Supply Voltage
2.1V
Mount
Surface Mount
Nominal Output Voltage
1.2V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
300mA
Output Type
Fixed
Output Voltage
1.2V
Package Quantity
4000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
55dB
Quiescent Current
220uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1824ST-1202E/DB Datasheet
Download the complete datasheet for Microchip MCP1824ST-1202E/DB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

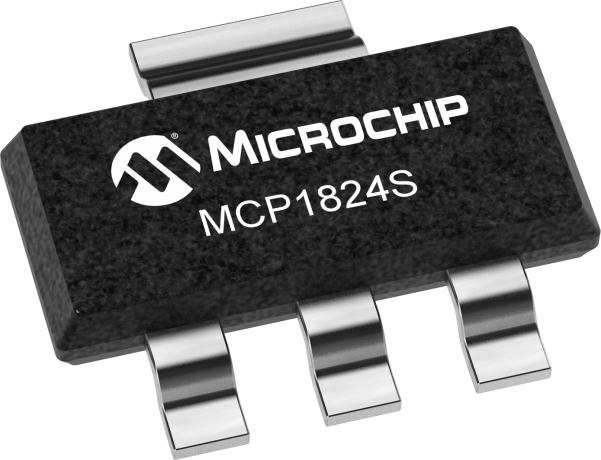

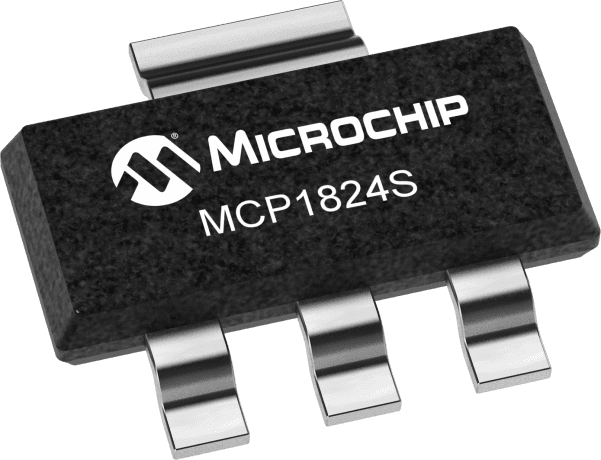

Product Images
