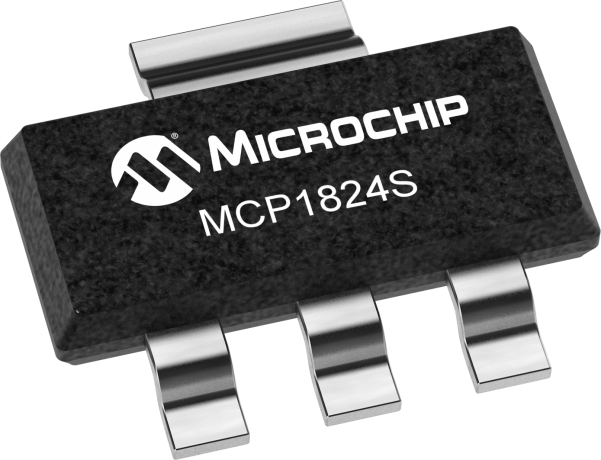

Microchip MCP1824ST-2502E/DB technical specifications.
| Package/Case | SOT-223-3 |
| Dropout Voltage | 200mV |
| Height | 1.6mm |
| Input Bias Current | 120uA |
| Length | 6.5mm |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.1V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Number of Outputs | 1 |
| Output Current | 300mA |
| Output Type | Fixed |
| Output Voltage | 2.5V |
| Package Quantity | 4000 |
| Packaging | Cut Tape |
| Polarity | Positive |
| Quiescent Current | 220uA |
| RoHS Compliant | Yes |
| Series | MCP1824 |
| Weight | 0.008818oz |
| Width | 3.5mm |
| RoHS | Compliant |
