3V fixed positive LDO regulator with 300mA output current and 2.5% accuracy. Features a low 200mV dropout voltage and a maximum input voltage of 6V. Operates from -40°C to 125°C in a SOT-223 surface mount package. RoHS compliant.
PackageSOT-223
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1824ST-3002E/DB technical specifications.
General
Accuracy
2.5%
Package/Case
SOT-223
Dropout Voltage
200mV
Height
1.6mm
Input Bias Current
120uA
Length
6.5mm
Max Input Voltage
6V
Min Input Voltage
2.1V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
300mA
Mount
Surface Mount
Nominal Output Voltage
3V
Number of Outputs
1
Output Current
300mA
Output Type
Fixed
Output Voltage
3V
Package Quantity
4000
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
220uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1824ST-3002E/DB Datasheet
Download the complete datasheet for Microchip MCP1824ST-3002E/DB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

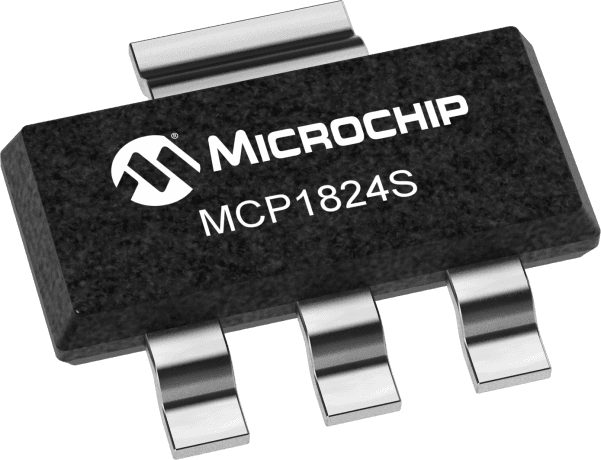

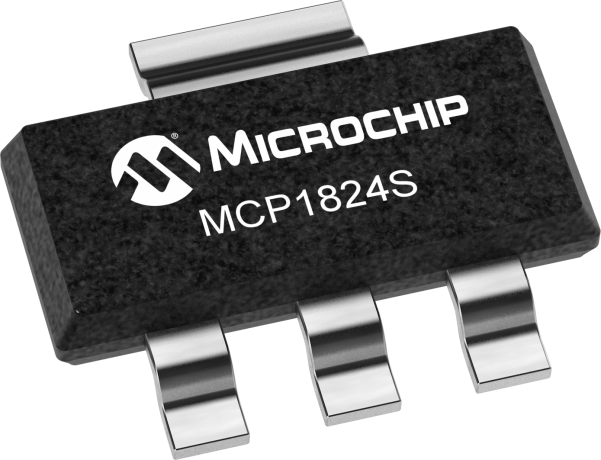

Product Images
