Positive fixed output linear voltage regulator IC, providing 800mV at 300mA. Features a 200mV dropout voltage and 2.5% accuracy. Operates from a 2.1V to 6V input, with a quiescent current of 220uA and input bias current of 120uA. Packaged in a SOT-223 surface mount case, measuring 6.5mm x 3.5mm x 1.6mm. RoHS compliant and lead-free, suitable for operation between -40°C and 125°C.
PackageSOT-223
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1824T-0802E/DC technical specifications.
General
Accuracy
2.5%
Package/Case
SOT-223
Dropout Voltage
200mV
Height
1.6mm
Input Bias Current
120uA
Lead Free
Lead Free
Length
6.5mm
Max Input Voltage
6V
Min Input Voltage
2.1V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
300mA
Min Output Voltage
800mV
Mount
Surface Mount
Number of Outputs
1
Output Current
300mA
Output Type
Fixed
Output Voltage
800mV
Package Quantity
4000
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
220uA
Radiation Hardening
No
RoHS Compliant
Yes
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1824T-0802E/DC Datasheet
Download the complete datasheet for Microchip MCP1824T-0802E/DC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

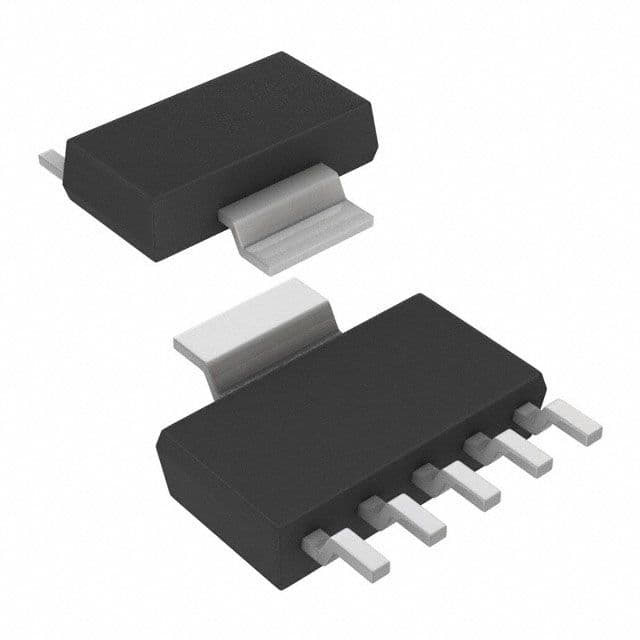

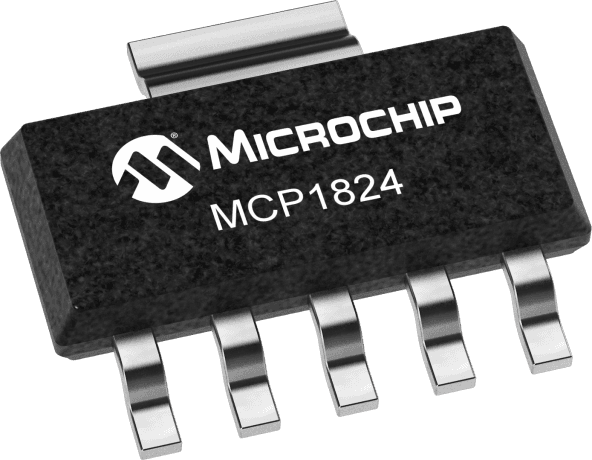

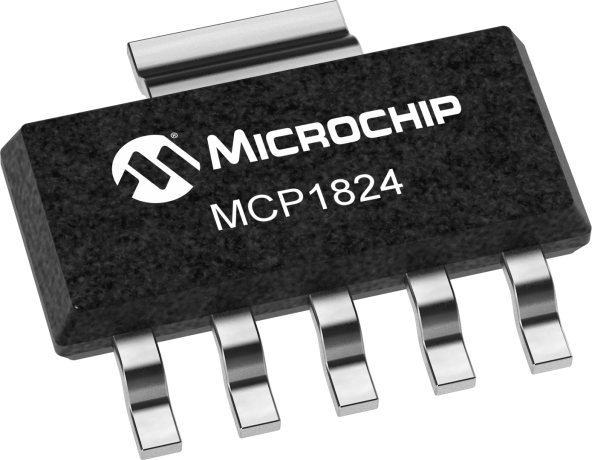

Product Images
