Positive fixed output linear voltage regulator IC, providing 800mV at 300mA. Features a low dropout voltage of 200mV and a maximum input voltage of 6V, with a minimum input voltage of 2.1V. Operates across a temperature range of -40°C to 125°C. Packaged in a compact SOT-23 surface mount case, measuring 3.1mm x 1.8mm x 1.3mm. RoHS compliant with 2.5% accuracy and 220uA quiescent current.
PackageSOT-23
MountingSurface Mount
PolarityPositive
Power254mW
Quick Jump:
Technical Specifications
Microchip MCP1824T-0802E/OT technical specifications.
General
Accuracy
2.5%
Package/Case
SOT-23
Dropout Voltage
200mV
Height
1.3mm
Input Bias Current
120uA
Length
3.1mm
Max Input Voltage
6V
Min Input Voltage
2.1V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
300mA
Max Output Voltage
800mV
Max Supply Voltage
6V
Min Supply Voltage
2.1V
Mount
Surface Mount
Number of Outputs
1
Output Current
300mA
Output Type
Fixed
Output Voltage
800mV
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
254mW
Quiescent Current
220uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Width
1.8mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1824T-0802E/OT Datasheet
Download the complete datasheet for Microchip MCP1824T-0802E/OT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

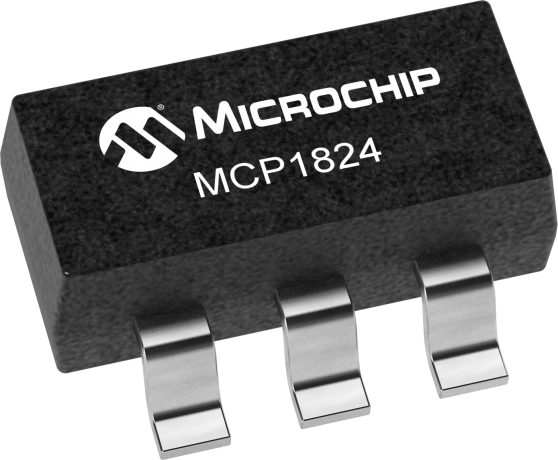

Product Images
