1.2V fixed output linear voltage regulator IC, delivering up to 300mA output current. Features a 200mV dropout voltage and 2.5% accuracy. Operates with a maximum input voltage of 6V and a minimum of 2.1V. Packaged in a SOT-223 surface mount case, this RoHS compliant component offers a wide operating temperature range from -40°C to 125°C.
PackageSOT-223
MountingSurface Mount
PolarityPositive
Power1.048W
Quick Jump:
Technical Specifications
Microchip MCP1824T-1202E/DC technical specifications.
General
Accuracy
2.5%
Package/Case
SOT-223
Dropout Voltage
200mV
Height
1.6mm
Input Bias Current
120uA
Lead Free
Lead Free
Length
6.5mm
Max Input Voltage
6V
Min Input Voltage
2.1V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
300mA
Max Output Voltage
1.2V
Min Output Voltage
1.2V
Max Supply Voltage
6V
Min Supply Voltage
2.1V
Mount
Surface Mount
Number of Outputs
1
Output Current
300mA
Output Type
Fixed
Output Voltage
1.2V
Package Quantity
4000
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
1.048W
Quiescent Current
220uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1824T-1202E/DC Datasheet
Download the complete datasheet for Microchip MCP1824T-1202E/DC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

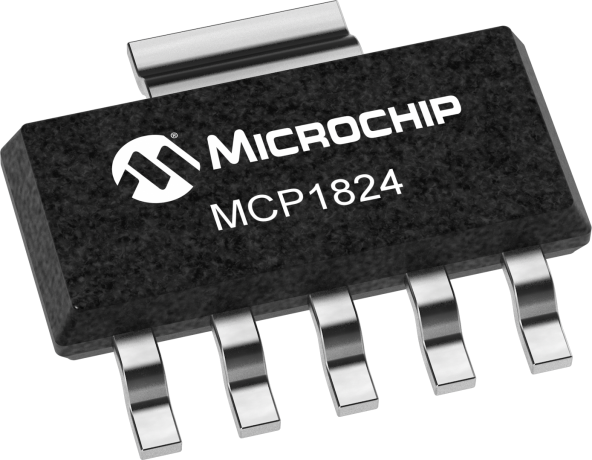

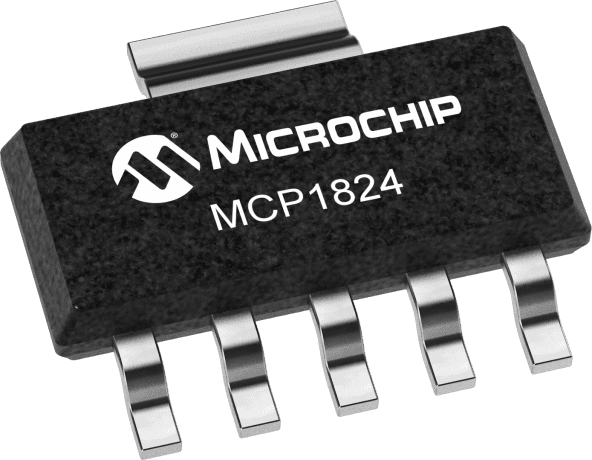

Product Images
