2.5V fixed positive LDO regulator, offering a 300mA output current with a low 200mV dropout voltage. Features a 2.5% accuracy and a 55dB PSRR. Operates from a 2.1V to 6V input voltage range and is housed in a compact SOT-23-5 surface mount package. Maximum operating temperature is 125°C.
PackageSOT-23-5
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1824T-2502E/OT technical specifications.
General
Accuracy
2.5%
Package/Case
SOT-23-5
Dropout Voltage
200mV
Height
1.3mm
Input Bias Current
120uA
Lead Free
Lead Free
Length
3.1mm
Max Input Voltage
6V
Min Input Voltage
2.1V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
300mA
Max Output Voltage
2.5V
Max Supply Voltage
6V
Min Supply Voltage
2.1V
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
300mA
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
55dB
Quiescent Current
220uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Width
1.8mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1824T-2502E/OT Datasheet
Download the complete datasheet for Microchip MCP1824T-2502E/OT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

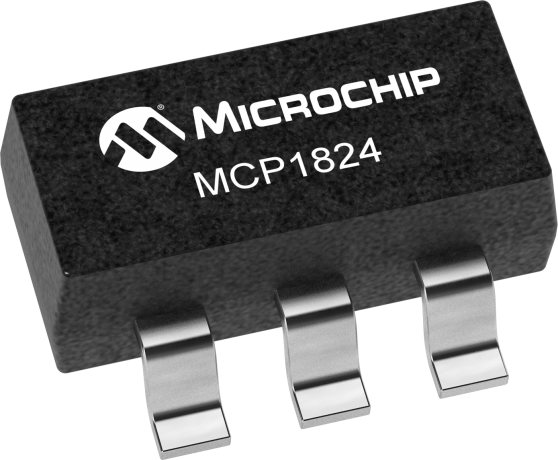

Product Images
