Adjustable positive linear voltage regulator with a maximum output current of 300mA. Features a dropout voltage of 200mV and an output voltage range from 0.8V to 5.5V. Operates with a maximum input voltage of 6V and a minimum input voltage of 2.1V. Offers 2.5% output voltage accuracy and a quiescent current of 220uA. Packaged in a SOT-223 surface mount case, this component is RoHS compliant and operates across a temperature range of -40°C to 125°C.
PackageSOT-223
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1824T-ADJE/DC technical specifications.
General
| Accuracy | 2.5% |
| Package/Case | SOT-223 |
| Dropout Voltage | 200mV |
| Height | 1.6mm |
| Input Bias Current | 120uA |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.1V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 300mA |
| Max Output Voltage | 5V |
| Min Output Voltage | 800mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 300mA |
| Output Type | Adjustable |
| Output Voltage | 5V |
| Output Voltage Accuracy | 2.5% |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 220uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | 410mV |
| RoHS Compliant | Yes |
| Width | 3.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP1824T-ADJE/DC Datasheet
Download the complete datasheet for Microchip MCP1824T-ADJE/DC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

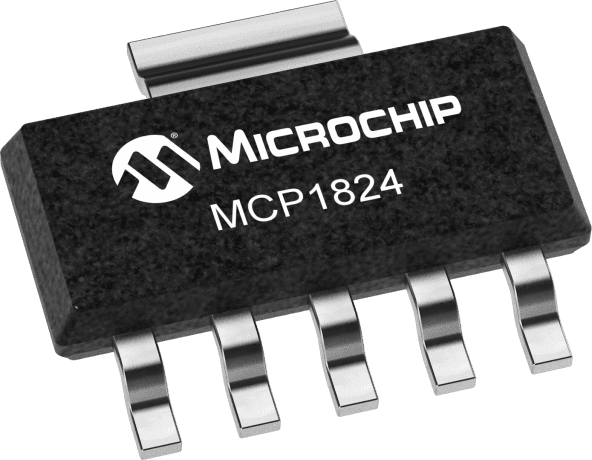

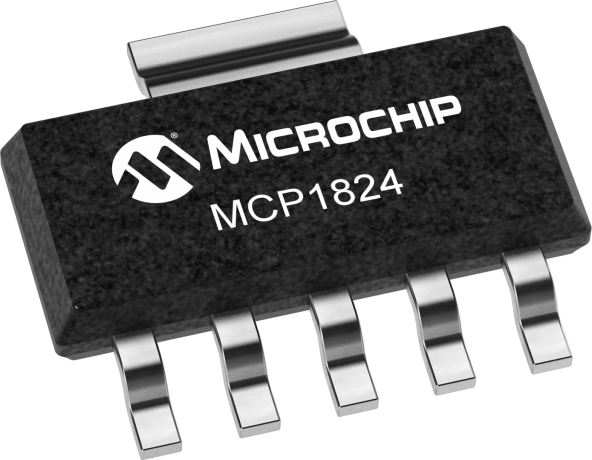

Product Images
