Microchip
MCP1825-0802E/AT
0.8 V FIXED POSITIVE LDO REGULATOR, 0.35 V DROPOUT, PSFM5, PLASTIC, TO-220, 5 PIN
PackageTO-220-5
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1825-0802E/AT technical specifications.
General
Package/Case
TO-220-5
Input Bias Current
120uA
Max Input Voltage
6V
Min Input Voltage
2.1V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Min Output Voltage
800mV
Mount
Through Hole
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
500mA
Output Type
Fixed
Output Voltage
800mV
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
60dB
Quiescent Current
220uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1825-0802E/AT Datasheet
Download the complete datasheet for Microchip MCP1825-0802E/AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

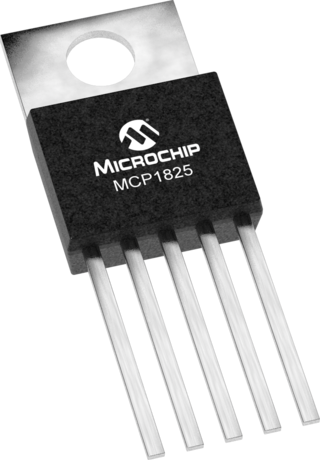

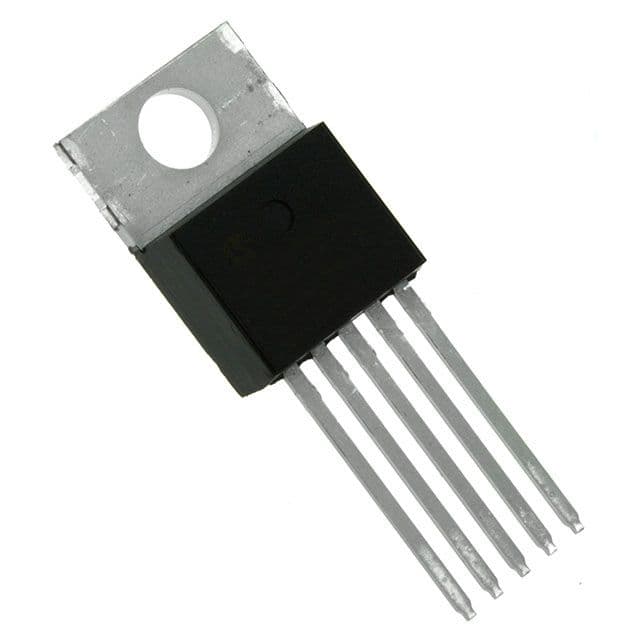

Product Images
