Positive fixed output voltage regulator, 800mV, with 500mA maximum output current. Features 0.35V dropout voltage and 0.5% accuracy. Operates from a 2.1V to 6V input voltage range. Surface mount package with 60dB PSRR and 120uA input bias current. RoHS compliant, with a -40°C to 125°C operating temperature range.
PackageTO-263-6
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1825-0802E/ET technical specifications.
General
Accuracy
0.5%
Package/Case
TO-263-6
Height
4.83mm
Input Bias Current
120uA
Length
10.67mm
Max Input Voltage
6V
Min Input Voltage
2.1V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Min Output Voltage
800mV
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
500mA
Output Type
Fixed
Output Voltage
800mV
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
60dB
Quiescent Current
220uA
Radiation Hardening
No
RoHS Compliant
Yes
Width
9.65mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1825-0802E/ET Datasheet
Download the complete datasheet for Microchip MCP1825-0802E/ET to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

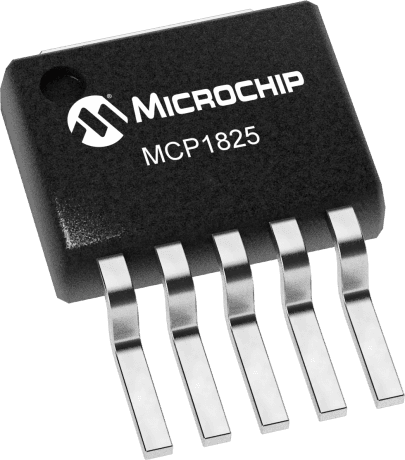

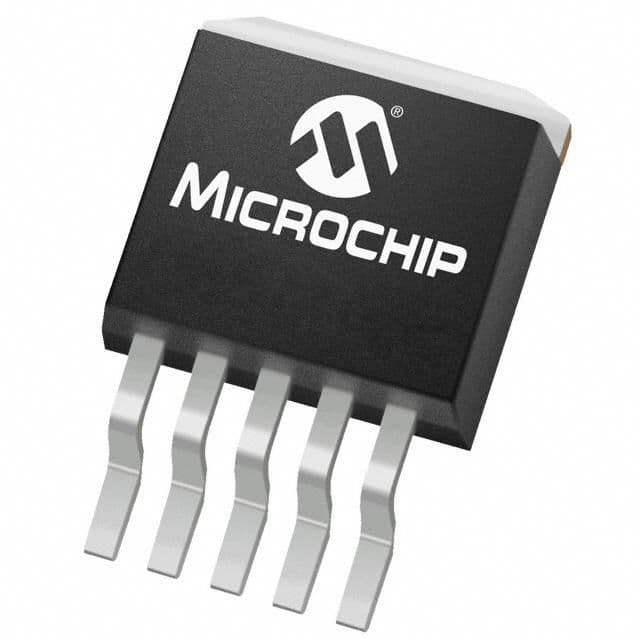

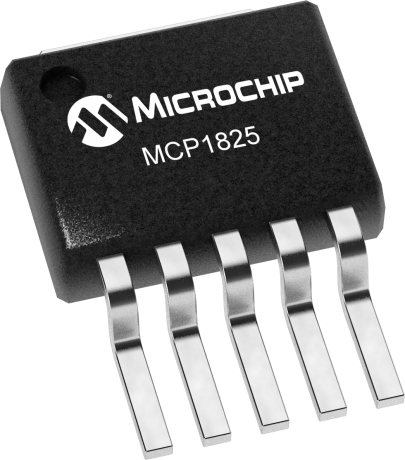

Product Images
