Positive fixed linear voltage regulator with a 2.5V output voltage and 500mA maximum output current. Features a low dropout voltage of 210mV and 2.5% accuracy. Operates with a maximum input voltage of 6V and a minimum input voltage of 2.1V. Housed in a TO-220 package for through-hole mounting, with a quiescent current of 220uA. RoHS compliant and suitable for operation across a -40°C to 125°C temperature range.
PackageTO-220
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1825-2502E/AT technical specifications.
General
| Accuracy | 2.5% |
| Package/Case | TO-220 |
| Dropout Voltage | 210mV |
| Height | 0.65inch |
| Input Bias Current | 120uA |
| Length | 10.67mm |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.1V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Mount | Through Hole |
| Nominal Output Voltage | 2.5V |
| Number of Outputs | 1 |
| Output Current | 500mA |
| Output Type | Fixed |
| Output Voltage | 2.5V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Quiescent Current | 220uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 0.19inch |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP1825-2502E/AT Datasheet
Download the complete datasheet for Microchip MCP1825-2502E/AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

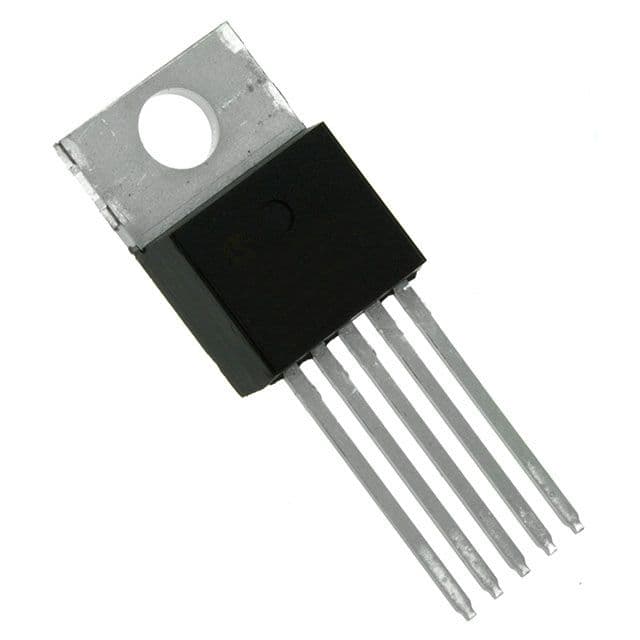

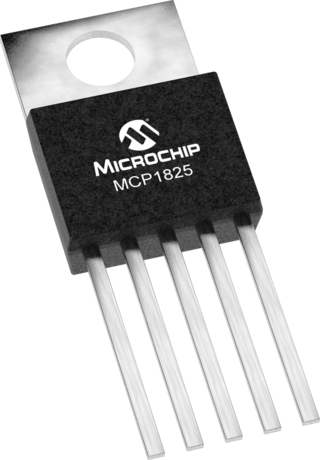

Product Images
