Positive fixed output linear voltage regulator IC with a 3.3V nominal output voltage and 500mA maximum output current. Features 0.5% accuracy and a low 210mV dropout voltage. Operates with a maximum input voltage of 6V and a minimum of 2.1V, drawing 120uA input bias current and 220uA quiescent current. Packaged in a TO-220 case for through-hole mounting, with a wide operating temperature range of -40°C to 125°C.
PackageTO-220
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1825-3302E/AT technical specifications.
General
Accuracy
0.5%
Package/Case
TO-220
Dropout Voltage
210mV
Height
9.02mm
Input Bias Current
120uA
Lead Free
Lead Free
Length
10.67mm
Max Input Voltage
6V
Min Input Voltage
2.1V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Min Output Voltage
3.3V
Mount
Through Hole
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
500mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
60dB
Quiescent Current
220uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
4.83mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1825-3302E/AT Datasheet
Download the complete datasheet for Microchip MCP1825-3302E/AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

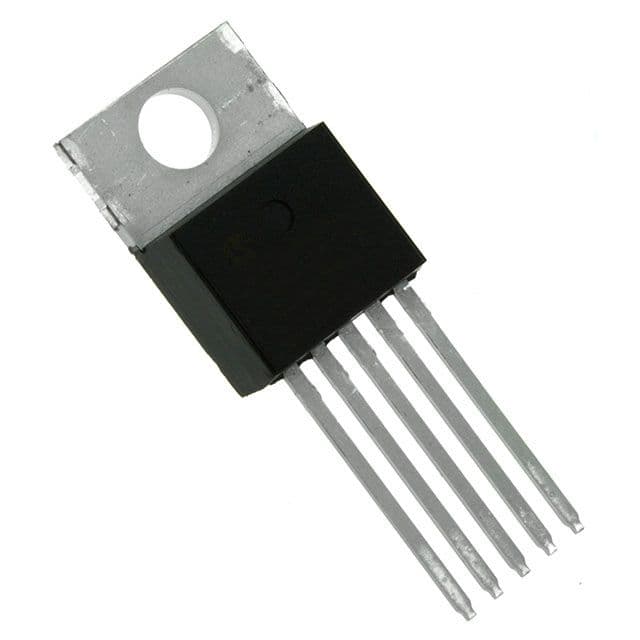

Product Images
