Adjustable positive LDO regulator with 500mA output current and 0.35V dropout voltage. Features 0.5% accuracy, 2.1V to 6V input voltage range, and 0.8V to 5V adjustable output voltage. Housed in a 5-pin TO-220 package for through-hole mounting, operating from -40°C to 125°C. RoHS compliant with a 220uA quiescent current.
PackageTO-220
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1825-ADJE/AT technical specifications.
General
| Accuracy | 0.5% |
| Package/Case | TO-220 |
| Dropout Voltage | 210mV |
| Height | 9.02mm |
| Input Bias Current | 120uA |
| Lead Free | Lead Free |
| Length | 10.67mm |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.1V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Output Voltage | 5V |
| Min Output Voltage | 800mV |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 500mA |
| Output Type | Adjustable |
| Output Voltage | 5V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Quiescent Current | 220uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | 410mV |
| RoHS Compliant | Yes |
| Width | 4.83mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP1825-ADJE/AT Datasheet
Download the complete datasheet for Microchip MCP1825-ADJE/AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

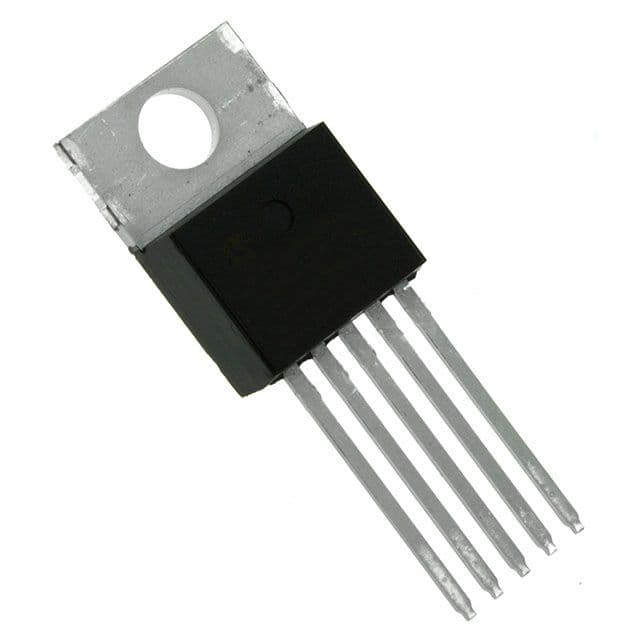

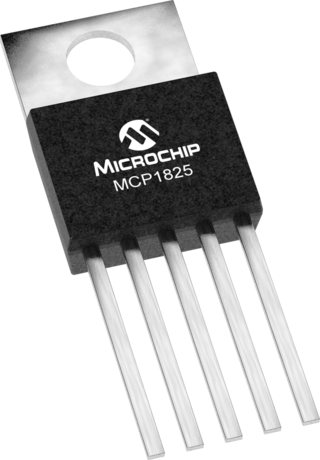

Product Images
