MICROCHIP

MCP1825S-1202E/DB

Datasheet

1.2V Fixed LDO Regulator, 500mA, 210mV Dropout, SOT-223

Microchip

MCP1825S-1202E/DB

Name: MCP1825S-1202E/DB Microchip
Brand: Microchip
SKU: MCP1825S-1202E/DB

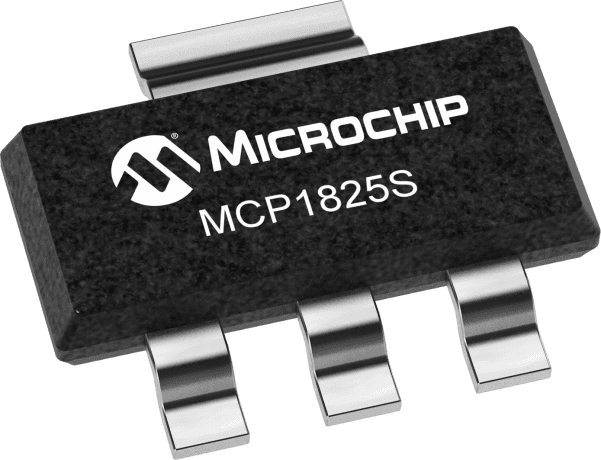

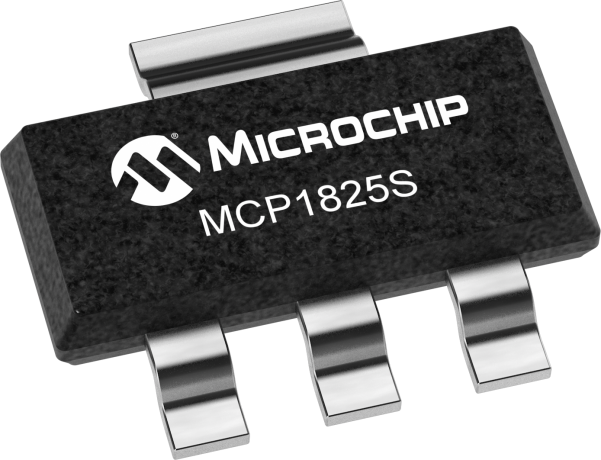

1.2V Fixed LDO Regulator, 500mA, 210mV Dropout, SOT-223

1.2V fixed positive LDO regulator with 500mA output current and 210mV dropout voltage. Features a 2.5% accuracy, 6V maximum input voltage, and operates from 2.1V to 6V. This surface mount component is housed in a SOT-223 package, measuring 6.7mm x 3.7mm x 1.7mm. It offers a quiescent current of 220uA and an input bias current of 120uA, with an operating temperature range of -40°C to 125°C.

PackageSOT-223

MountingSurface Mount

PolarityPositive

Quick Jump:

Technical Specifications

Microchip MCP1825S-1202E/DB technical specifications.

General

Accuracy	2.5%
Package/Case	SOT-223
Dropout Voltage	210mV
Height	1.7mm
Input Bias Current	120uA
Lead Free	Lead Free
Length	6.7mm
Max Input Voltage	6V
Min Input Voltage	2.1V
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Output Current	500mA
Min Output Voltage	1.2V
Mount	Surface Mount
Number of Outputs	1
Output Current	500mA
Output Type	Fixed
Output Voltage	1.2V
Package Quantity	78
Packaging	Rail/Tube
Polarity	Positive
Quiescent Current	220uA
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	No
Width	3.7mm
