3V positive fixed output linear voltage regulator with 500mA maximum output current. Features a 0.21V dropout voltage at 500mA and 0.5% accuracy. Operates from a 2.1V to 6V input voltage range with a maximum operating temperature of 125°C. Packaged in a SOT-223 surface mount case.
PackageSOT-223
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1825T-3002E/DC technical specifications.
General
Accuracy
0.5%
Package/Case
SOT-223
Dropout Voltage
210mV
Height
1.6mm
Input Bias Current
120uA
Length
6.5mm
Max Input Voltage
6V
Min Input Voltage
2.1V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Output Voltage
3V
Max Supply Voltage
6V
Min Supply Voltage
2.1V
Mount
Surface Mount
Nominal Output Voltage
3V
Number of Channels
1
Number of Outputs
1
Output Current
500mA
Output Type
Fixed
Output Voltage
3V
Package Quantity
4000
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
220uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1825T-3002E/DC Datasheet
Download the complete datasheet for Microchip MCP1825T-3002E/DC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

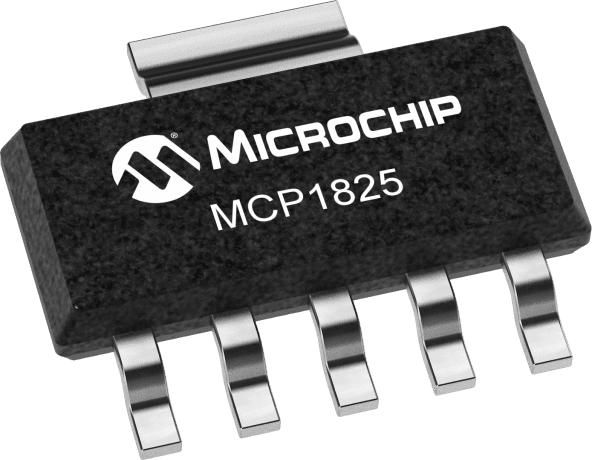

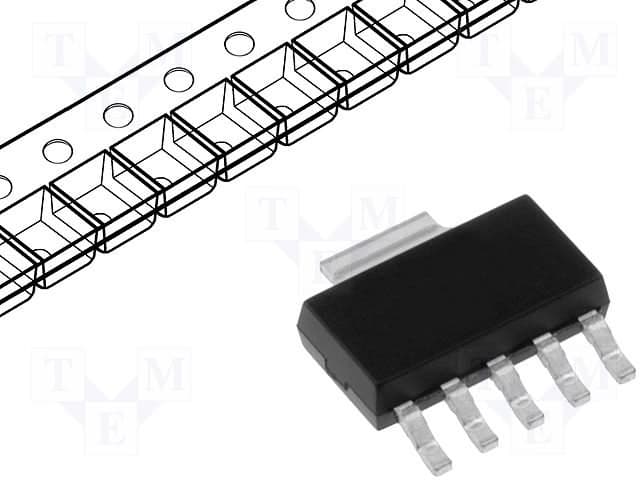

Product Images
