PackageD2PAK
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1826-0802E/ET technical specifications.
General
Accuracy
2%
Package/Case
D2PAK
Dropout Voltage
250mV
Height
4.83mm
Input Bias Current
120uA
Length
10.67mm
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Mount
Surface Mount
Number of Outputs
1
Output Current
1A
Output Type
Fixed
Output Voltage
800mV
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
220uA
Radiation Hardening
No
RoHS Compliant
Yes
Width
9.65mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1826-0802E/ET Datasheet
Download the complete datasheet for Microchip MCP1826-0802E/ET to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

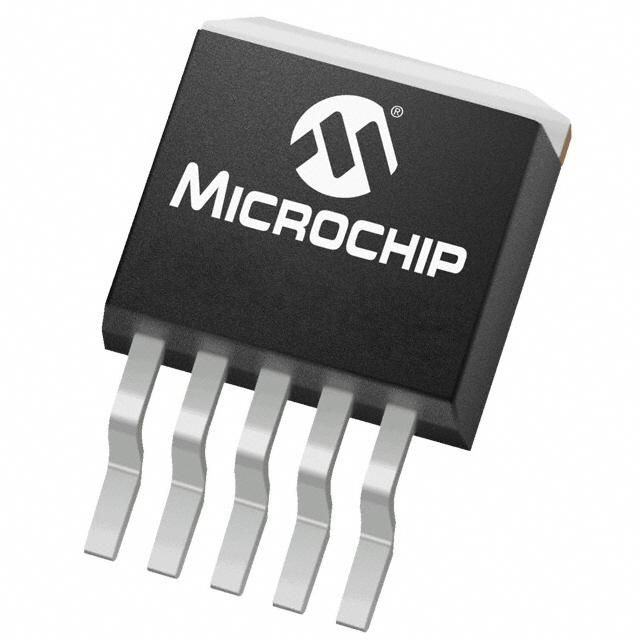

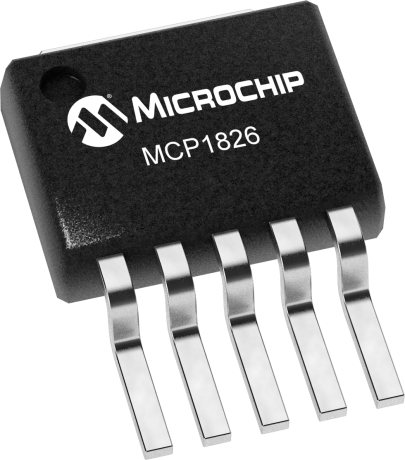

Product Images
