1A positive fixed 3V linear voltage regulator IC with 225mV dropout voltage and 2% accuracy. Features a maximum input voltage of 6V and a minimum input voltage of 2.3V. Operates across a temperature range of -40°C to 125°C, with 120µA input bias current and 220µA quiescent current. Packaged in a TO-220 case for through-hole mounting.
PackageTO-220
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1826-3002E/AT technical specifications.
General
Accuracy
2%
Package/Case
TO-220
Dropout Voltage
225mV
Height
9.02mm
Input Bias Current
120uA
Length
10.67mm
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Min Output Voltage
3V
Mount
Through Hole
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
3V
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
60dB
Quiescent Current
220uA
RoHS Compliant
Yes
Width
4.83mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1826-3002E/AT Datasheet
Download the complete datasheet for Microchip MCP1826-3002E/AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

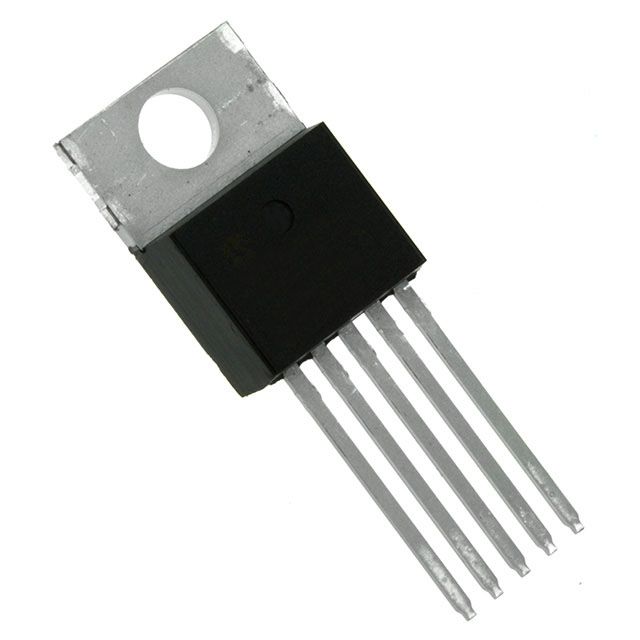

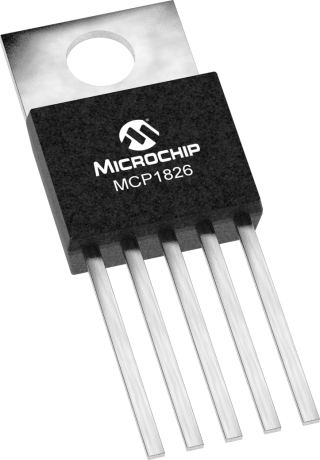

Product Images
