Positive fixed linear voltage regulator with a 5V output voltage and 1A maximum output current. Features a low 250mV dropout voltage at 1A and 2% accuracy. Operates with an input voltage range of 2.3V to 6V, a maximum supply voltage of 6V, and a maximum operating temperature of 125°C. Housed in a TO-220 package for through-hole mounting.
PackageTO-220
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1826-5002E/AT technical specifications.
General
Accuracy
2%
Package/Case
TO-220
Dropout Voltage
250mV
Height
9.02mm
Input Bias Current
120uA
Length
10.67mm
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
5V
Max Supply Voltage
6V
Min Supply Voltage
2.3V
Mount
Through Hole
Number of Outputs
1
Output Current
1A
Output Type
Fixed
Output Voltage
5V
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
220uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
4.83mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1826-5002E/AT Datasheet
Download the complete datasheet for Microchip MCP1826-5002E/AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

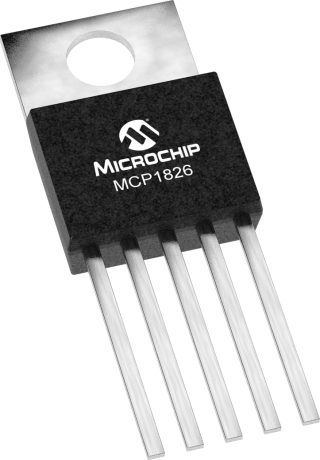

Product Images
