1A positive fixed output linear voltage regulator IC with a 1.2V output voltage and 2% accuracy. Features a 250mV dropout voltage, 6V maximum input voltage, and 1A maximum output current. This surface mount component is housed in a SOT-223 package, operating from -40°C to 125°C.
PackageSOT-223
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1826S-1202E/DB technical specifications.
General
| Accuracy | 2% |
| Package/Case | SOT-223 |
| Dropout Voltage | 250mV |
| Height | 1.65mm |
| Input Bias Current | 120uA |
| Lead Free | Lead Free |
| Length | 6.55mm |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Min Output Voltage | 1.2V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Fixed |
| Output Voltage | 1.2V |
| Output Voltage Accuracy | 2% |
| Package Quantity | 78 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 60dB |
| Quiescent Current | 220uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | 418mV |
| RoHS Compliant | Yes |
| Width | 3.55mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP1826S-1202E/DB Datasheet
Download the complete datasheet for Microchip MCP1826S-1202E/DB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

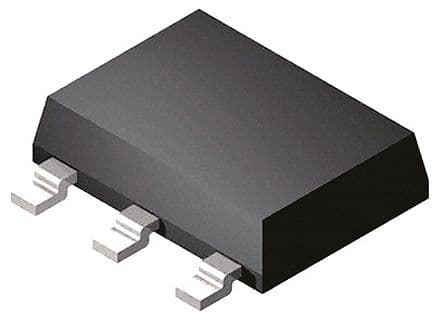

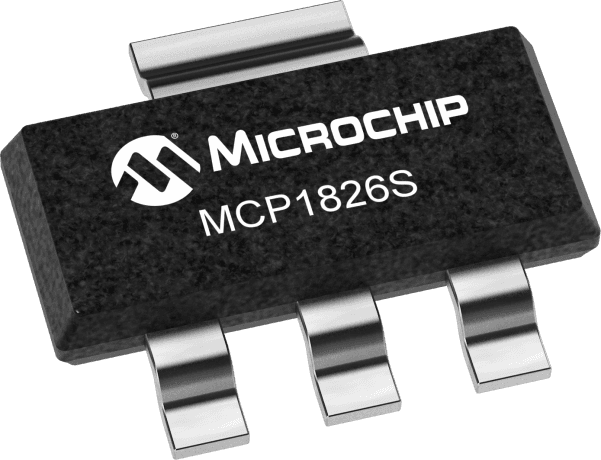

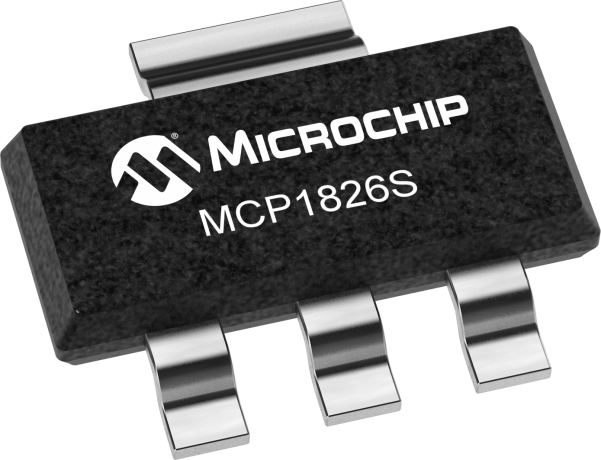

Product Images
