PackageTO-263-4
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1826ST-3302E/EB technical specifications.
General
Accuracy
2%
Package/Case
TO-263-4
Dropout Voltage
250mV
Input Bias Current
120uA
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Min Output Voltage
3.3V
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
750
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
60dB
Quiescent Current
220uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1826ST-3302E/EB Datasheet
Download the complete datasheet for Microchip MCP1826ST-3302E/EB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

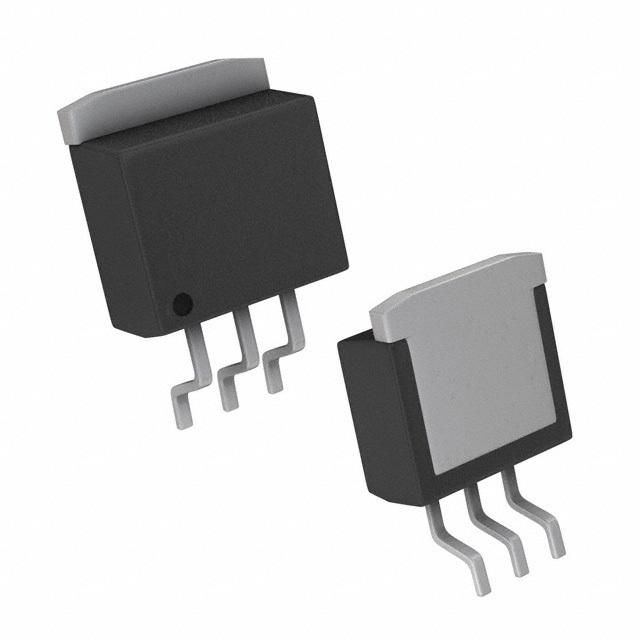

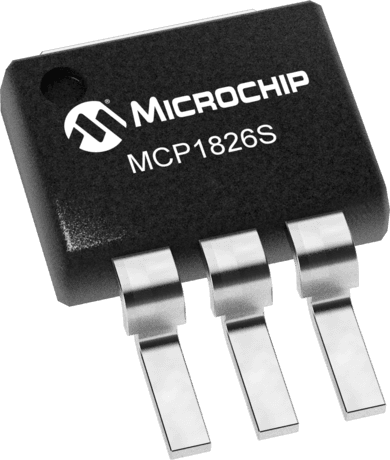

Product Images
