PackageSOT-223
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1826T-2502E/DC technical specifications.
General
Accuracy
2%
Package/Case
SOT-223
Dropout Voltage
250mV
Input Bias Current
120uA
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Min Output Voltage
2.5V
Mount
Surface Mount
Number of Outputs
1
Output Current
1A
Output Type
Fixed
Output Voltage
2.5V
Output Voltage Accuracy
2%
Package Quantity
4000
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
220uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1826T-2502E/DC Datasheet
Download the complete datasheet for Microchip MCP1826T-2502E/DC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

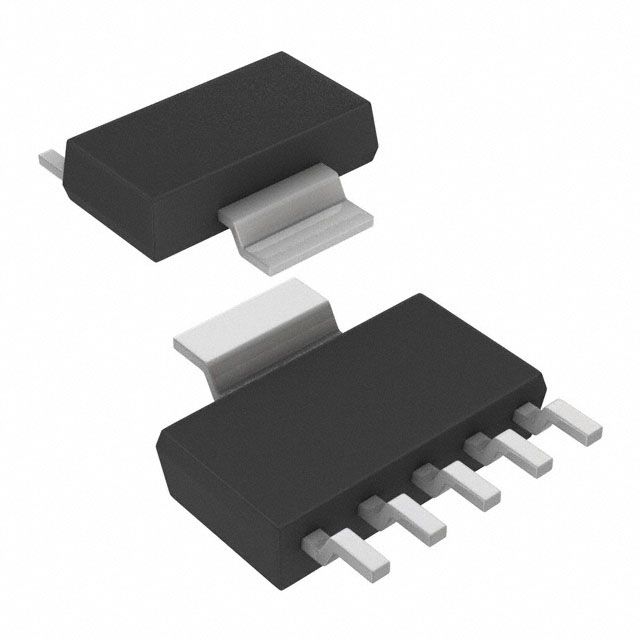

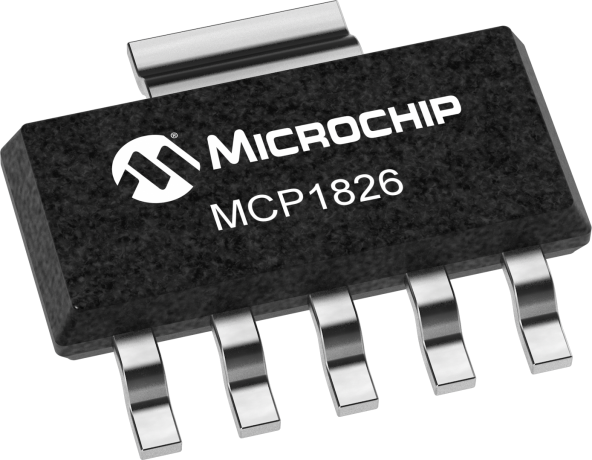

Product Images
