Adjustable positive linear voltage regulator, offering 1A output current with a 0.5% output voltage accuracy. Features a low dropout voltage of 250mV and operates from a 2.3V to 6V input supply. This surface mount component is housed in a SOT-223 package, suitable for automotive applications with a maximum operating temperature of 125°C.
PackageSOT-223
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1826T-ADJE/DC technical specifications.
General
| Accuracy | 0.5% |
| Package/Case | SOT-223 |
| Dropout Voltage | 250mV |
| Height | 1.6mm |
| Input Bias Current | 120uA |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 5V |
| Min Output Voltage | 800mV |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 5V |
| Output Voltage Accuracy | 0.5% |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 220uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | 410mV |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Width | 3.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP1826T-ADJE/DC Datasheet
Download the complete datasheet for Microchip MCP1826T-ADJE/DC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

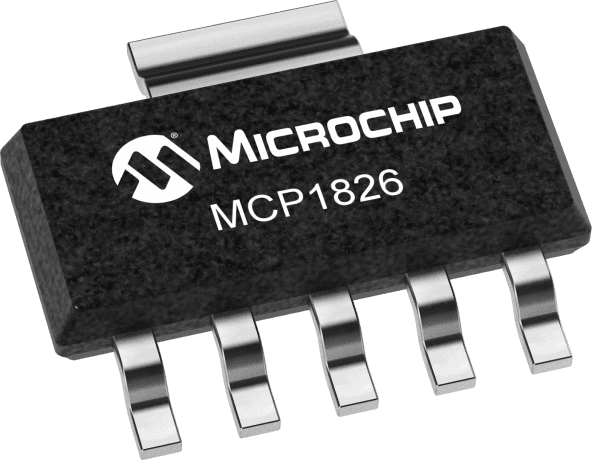

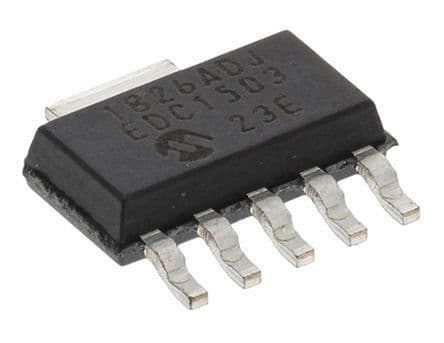

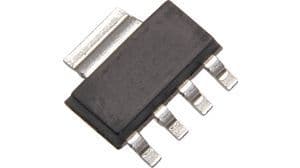

Product Images
