1.2V fixed output linear voltage regulator, delivering up to 1.5A output current. Features a 330mV dropout voltage and 2% accuracy. Operates with a maximum input voltage of 6V and a minimum of 2.3V. Packaged in a TO-220 through-hole mount, this positive polarity regulator offers a wide operating temperature range from -40°C to 125°C.
PackageTO-220
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1827-1202E/AT technical specifications.
General
Accuracy
2%
Package/Case
TO-220
Dropout Voltage
330mV
Height
0.355inch
Input Bias Current
120uA
Lead Free
Lead Free
Length
10.67mm
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Mount
Through Hole
Nominal Output Voltage
1.2V
Number of Outputs
1
Output Current
1.5A
Output Type
Fixed
Output Voltage
1.2V
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
220uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
0.19inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1827-1202E/AT Datasheet
Download the complete datasheet for Microchip MCP1827-1202E/AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

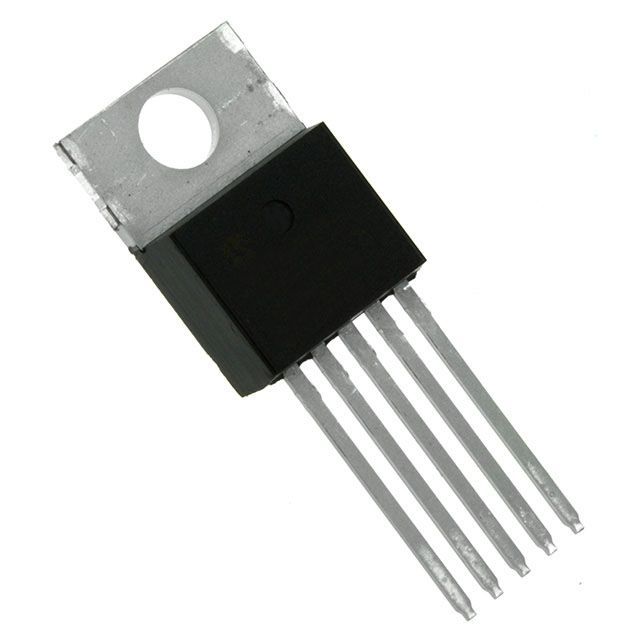

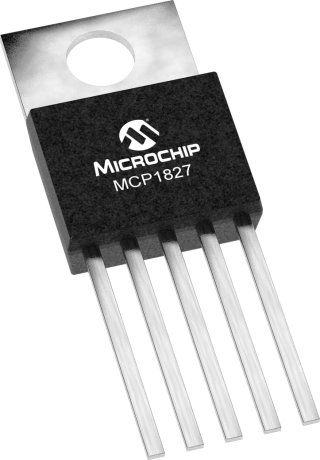

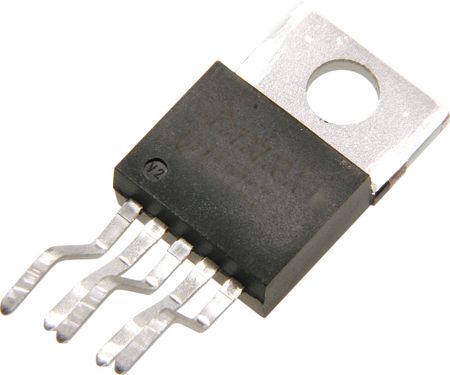

Product Images
