1.2V fixed positive linear voltage regulator with 330mV dropout voltage and 1.5A output current. Features 2% output voltage accuracy, 6V maximum input voltage, and a wide operating temperature range of -40°C to 125°C. This surface mount component is housed in a TO-263 package and is lead-free and RoHS compliant.
PackageTO-263
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1827-1202E/ET technical specifications.
General
Accuracy
2%
Package/Case
TO-263
Dropout Voltage
330mV
Height
0.19inch
Input Bias Current
120uA
Lead Free
Lead Free
Length
10.67mm
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Mount
Surface Mount
Number of Outputs
1
Output Current
1.5A
Output Type
Fixed
Output Voltage
1.2V
Output Voltage Accuracy
2%
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
220uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
0.38inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1827-1202E/ET Datasheet
Download the complete datasheet for Microchip MCP1827-1202E/ET to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

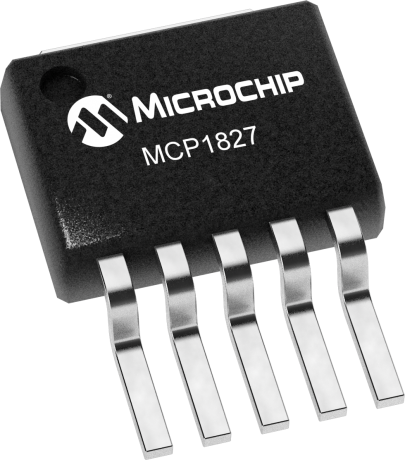

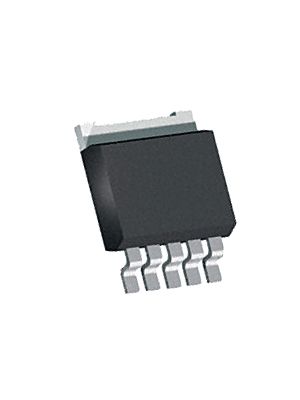

Product Images
