1.8V fixed positive LDO regulator with 1.5A output current and 330mV dropout voltage. Features 2% accuracy, 120µA input bias current, and 220µA quiescent current. Operates from 2.3V to 6V input voltage and a temperature range of -40°C to 125°C. Packaged in a 5-pin TO-220 through-hole mount. RoHS compliant and lead-free.
PackageTO-220
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1827-1802E/AT technical specifications.
General
Accuracy
2%
Package/Case
TO-220
Dropout Voltage
330mV
Height
0.65inch
Input Bias Current
120uA
Lead Free
Lead Free
Length
10.67mm
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Mount
Through Hole
Nominal Output Voltage
1.8V
Number of Outputs
1
Output Current
1.5A
Output Type
Fixed
Output Voltage
1.8V
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
220uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
0.19inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1827-1802E/AT Datasheet
Download the complete datasheet for Microchip MCP1827-1802E/AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

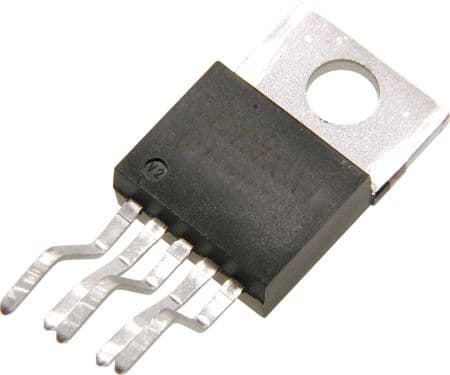

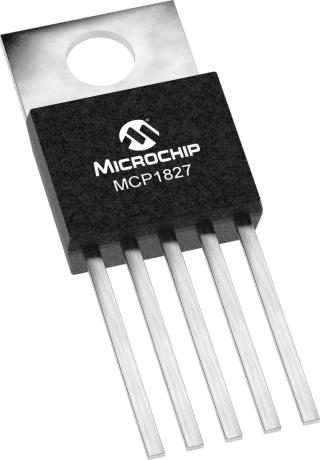

Product Images
