Surface mount positive linear voltage regulator, outputting a fixed 2.5V with a maximum output current of 1.5A. Features a low dropout voltage of 330mV and an accuracy of 2%. Operates with a maximum input voltage of 6V and a minimum input voltage of 2.3V, across an ambient temperature range of -40°C to 125°C. This RoHS compliant component is housed in a TO-263 package.
PackageTO-263
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1827-2502E/ET technical specifications.
General
Accuracy
2%
Package/Case
TO-263
Dropout Voltage
330mV
Height
0.19inch
Input Bias Current
120uA
Lead Free
Lead Free
Length
10.67mm
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Min Output Voltage
2.5V
Mount
Surface Mount
Number of Outputs
1
Output Current
1.5A
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
220uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
0.38inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1827-2502E/ET Datasheet
Download the complete datasheet for Microchip MCP1827-2502E/ET to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

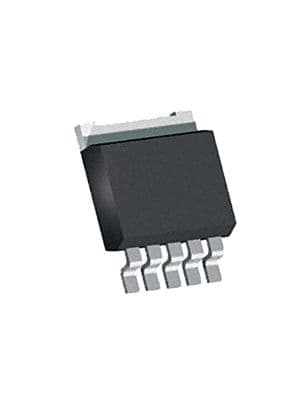

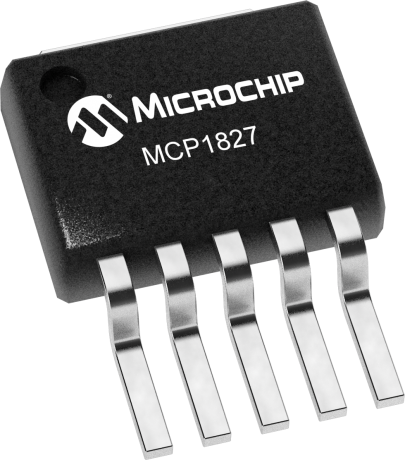

Product Images
